Fuel Injection System

Special Tools





Special tools, testers and auxiliary items required

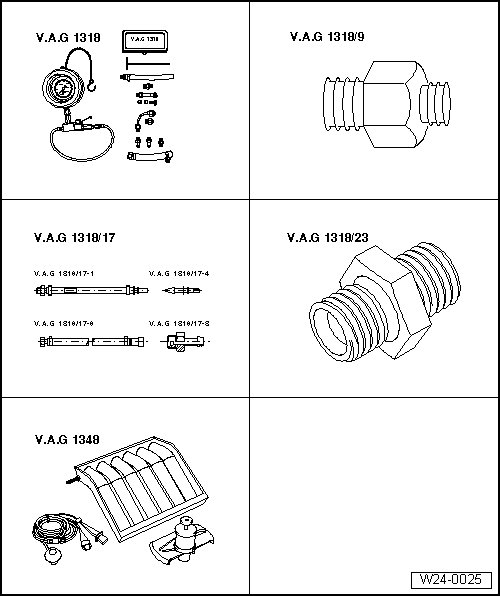

• Pressure gauge K-Jetronic (V.A.G 1318)

• Adapter (V.A.G 1318/9)

• Pressure gauge adapter (V.A.G 1318/17)

• Double connection (V.A.G 1318/23)

• Remote control connection (V.A.G 1348/3A)





Special tools, testers and auxiliary items required

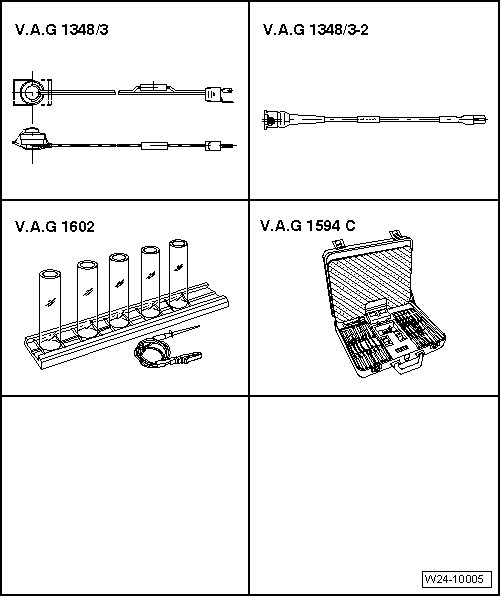

• Remote control connection (V.A.G 1348/3A)

• Adapter cable (V.A.G 1348/3-2)

• Injector quantity testing device (V.A.G 1602)

• Connector test set (V.A.G 1594 C)

• Test instrument adapter/DSO (5-pin) (VAS 5565)

Special tools, testers and auxiliary items required

• Vehicle diagnostic, testing, and information system (VAS 5051)

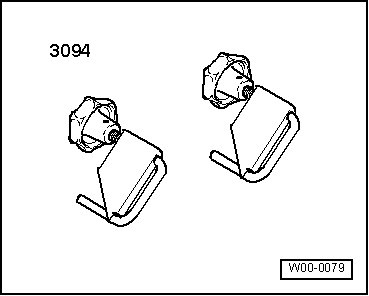

• Hose clamps up to 25 mm diameter (3094)





• Torque Wrench (V.A.G 1331)

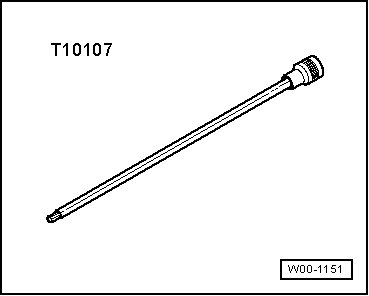

• Multi-point socket (T10107 A)





• Saw set (V.A.G 1561/14)





• Hot air gun from wiring harness repair kit (VAS 1978 )





• Locking pliers

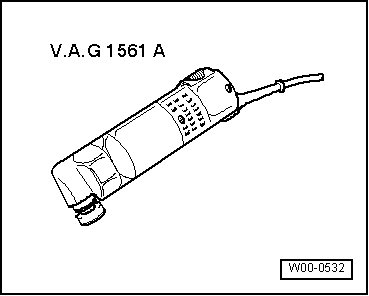

• Electric cutter (V.A.G 1561A)
