Passive Occupant Detection System, Assembly Overview

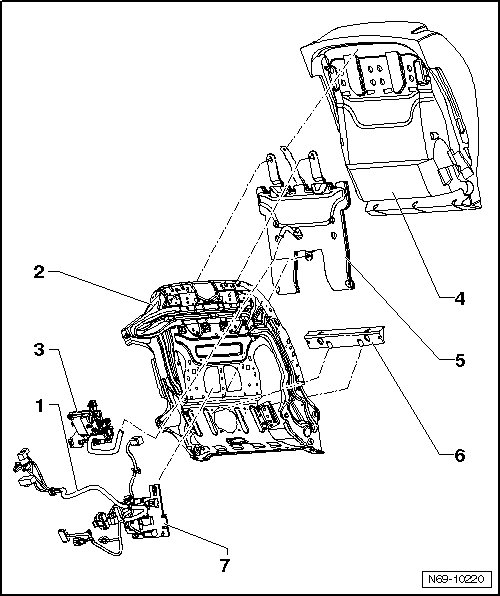

Passive Occupant Detection System, Assembly Overview






1 Front seat wiring harness

2 Seat frame

3 Seat Occupied Recognition Control Module (J706)

4 Upholstery of front seat cushion

• Must not be separated from mat for seat occupied recognition

5 Passive Occupant Detection System Mat

• Must not be removed from pressure hose and upholstery of front seat cushion

6 Insertion profile

• Note location

7 Bracket

• White
