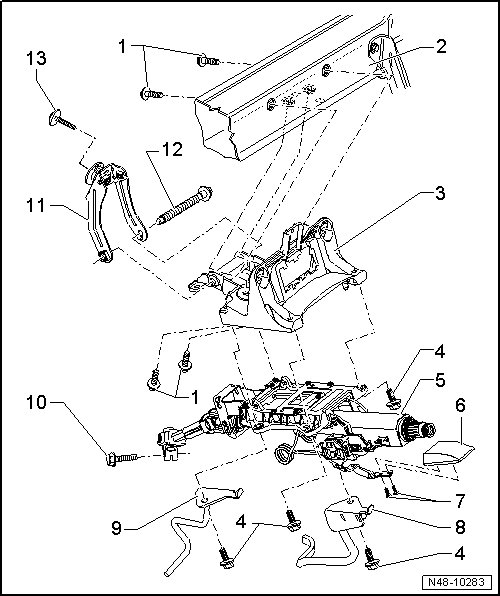

Steering Column Assembly Overview

Steering Column Assembly Overview

• Welding and straightening work on supporting or wheel carrying components of suspension is not permitted.

• Always replace self-locking nuts.

• Always replace corroded bolts/nuts.





1 Bolt

• 20 Nm

2 Lateral Control Arm for Steering Column

3 Mounting Bracket

• Removing and installing, refer to => [ Mounting Bracket ] Mounting Bracket

4 Bolt

• Always replace after removal

• 20 Nm

5 Steering Column

• Removing and installing, refer to => [ Steering Column ] Steering Column

6 Handle Plate

7 Bolt

• 3 Nm

8 Brake Pedal Crash Brace

9 Clutch Pedal Crash Brace

10 Bolt

• Always replace after removal

• 30 Nm

11 Strut

• Removing and installing, refer to => [ Strut ] Strut

12 Bolt

• 20 Nm

13 Bolt

• 20 Nm
