Controls, Housing

Special Tools

Special tools, testers and auxiliary items required

• Adapter (10 - 222 A/18)

• Transmission Support (3282)

• Engine Support Device (3300 A)

• Support (T10036 A)

• Support (T10036)

• Holding Plate (VW 309)

• Transmission Support (VW 353)

• Driving Sleeve (VW 244 B)

• Hot Air Blower (V.A.G 1416)

• 2-Arm Puller (20/10)

• Support Bridge (T10323)

• Wheel Bearing Assembly Set (3253/7)

• Thrust Pad Con.8/65 (VW 433)

• Thrust Piece (40 -105)

• Puller (T10408)

• Seal Installer Set - Rear Diff (3066)

• Thrust Pad (3124)

• Slide Hammer-Complete Set (VW 771)

• Additional Part for VW 771 (VW 771/37)

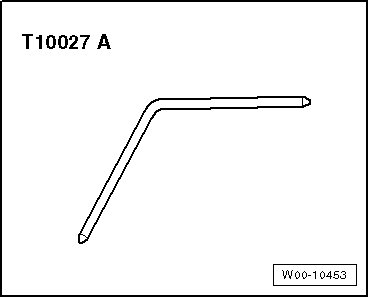

• Connecting Pin (T10027 A)

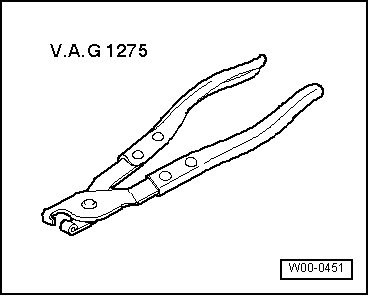

• Hose Clamp Pliers (V.A.G 1275)

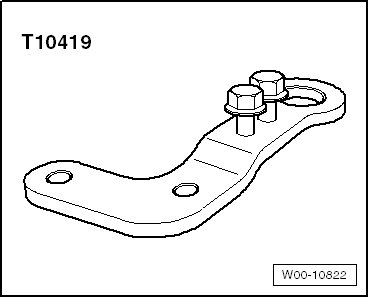

• Plate (T10419)

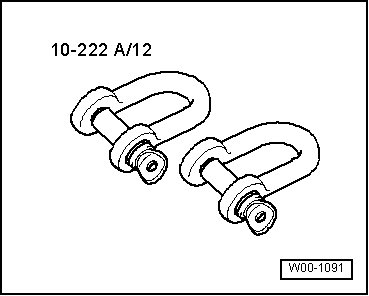

• Shackle (10-222 A/12)

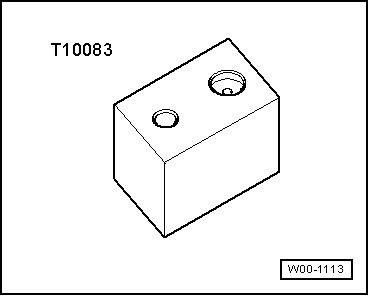

• Thrust Block (T10083)

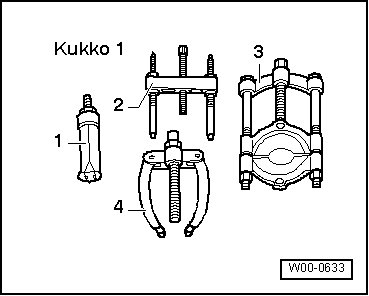

• - 2 -Kukko Puller 65-160 mm (Kukko 18/1)

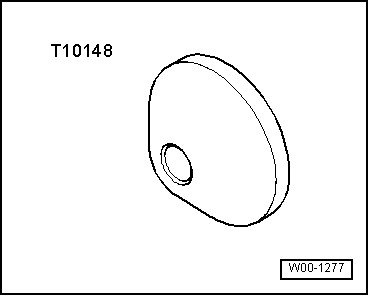

• Thrust Piece (T10148)

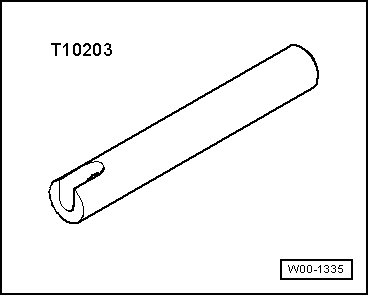

• Thrust Piece (T10203)

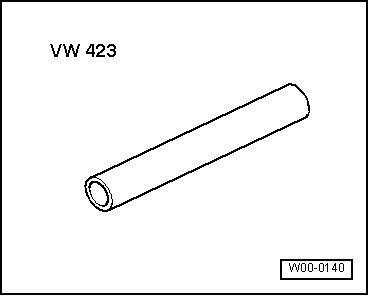

• Sleeve (VW 423)

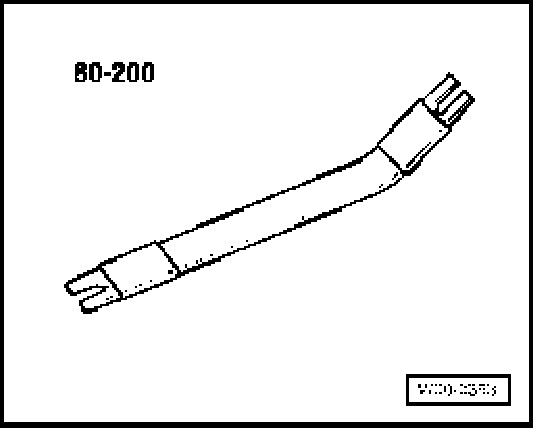

• Pry Lever-Rmv Outside Mirror (80–200)

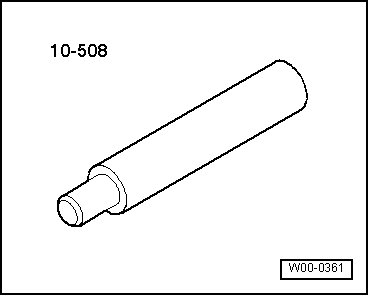

• Assembly Mandrel (10 - 508)

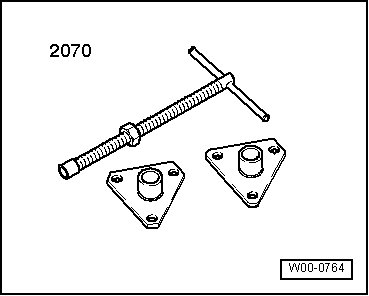

• Spring Strut Compressor (2070)

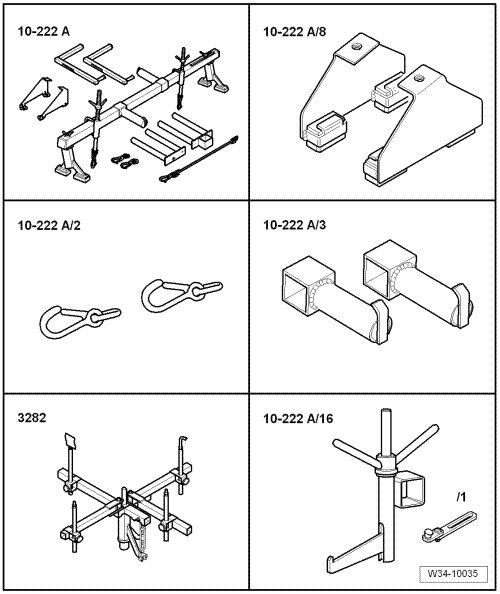

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)

• Engine Support Feet (10 - 222 A/ 8)

• Additional Hooks ( 10 - 222 A/2)

• Engine Support Adapter (10 - 222 A/3)

• Transmission Support (3282)

• Adapter (10 - 222 A/16)






Special tools, testers and auxiliary items required

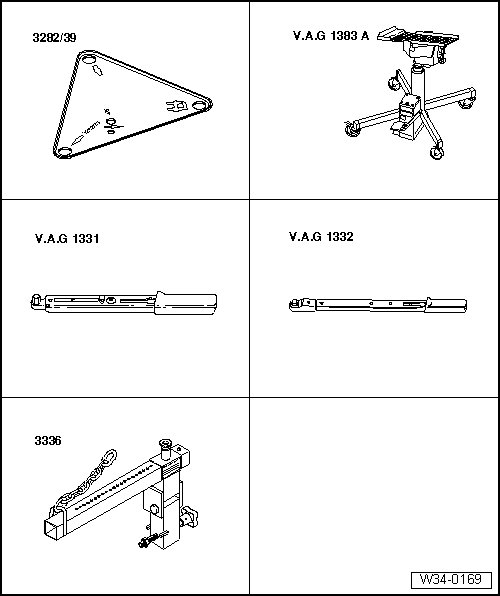

• Adjustment Plate (3282/39)

• Transmission mounting elements, (when mounting the adjusting plate on the transmission support)

• Engine/Transmission Jack (V.A.G 1383A)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Transmission Support Jig (3336) for transporting the transmission

• Grease for clutch shaft splines (G 000 100)

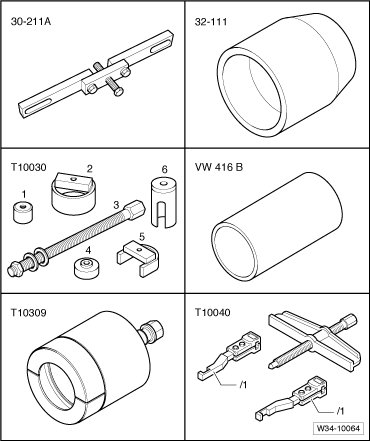

Special tools, testers and auxiliary items required

• Bracket (30-211A)

• Driving Sleeve (32 -111)

• Thrust Piece (T10030/4)

• Tube 37 mm Dia. (VW 416 B)

• Puller (T10309)

• Two-Arm Puller (T10040)

• Puller Legs with Thrust Piece (T10040/2A + /3)






Special tools, testers and auxiliary items required

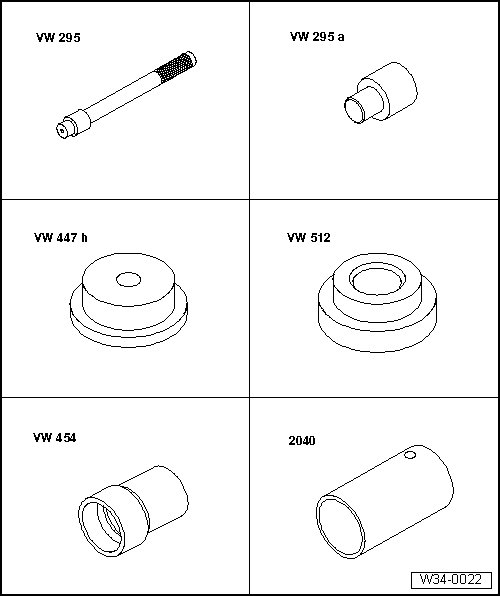

• Needle Bearing Drift (VW 295)

• Needle Bearing Drift (VW 295 A)

• Thrust Pad (VW 447 H)

• Thrust Pad (VW 512)

• Press Tube (2040)

• Thrust Tube (VW 454)

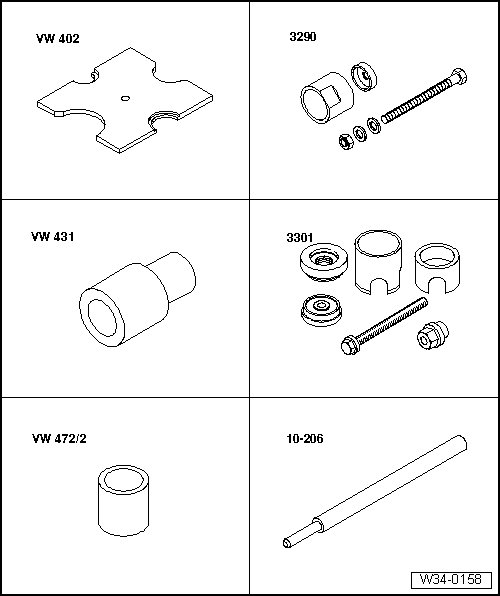

Special tools, testers and auxiliary items required

• Thrust Plate (VW 402)

• Thrust Piece (3290/1)

• Assembly Tool (3301)

• Thrust Pad 16.5/28 mm Dia. (VW 431)

• Sleeve (VW 472/2)

• Drift (10 - 206)
