Accelerator Pedal Position Sensor: Testing and Inspection

Throttle Position Sensor and Accelerator Pedal Position Sensor 2 Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram

Test requirement

• The Engine Control Module (ECM) (J623) fuses OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position "P" or "N".

• A/C switched off.

• Ground connections between engine/transmission/chassis OK.

• Use only gold-plated terminals when servicing the electrical harness connector terminals in Throttle Position Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185).

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

- Using a screwdriver, remove the steering column cover - arrows -.





- Disconnect the Throttle Position Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185) electrical harness connector - 2 -.





Checking voltage supply

- Switch the ignition On.

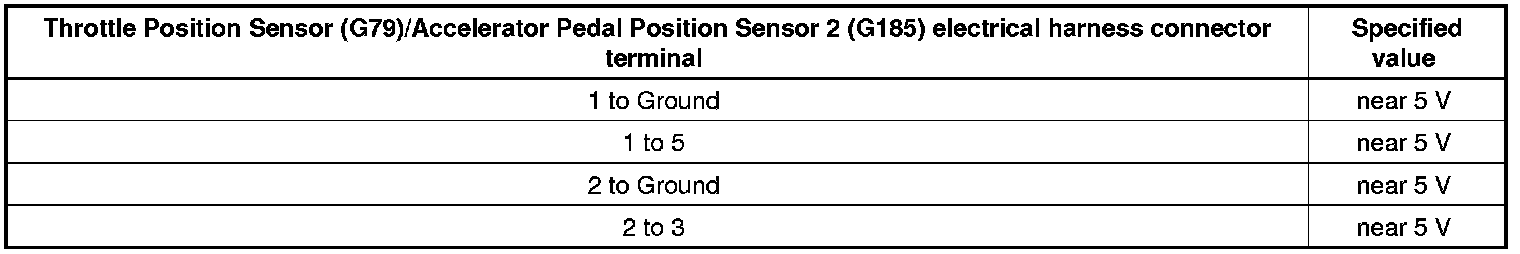

- Using a multimeter, check the following wiring connections for voltage.










- Switch the ignition Off.

If the specified values were obtained:

- Replace the Throttle Position Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185).

If any of the specified values were Not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Engine Control Module (ECM) (J623). Refer to the Repair Information.

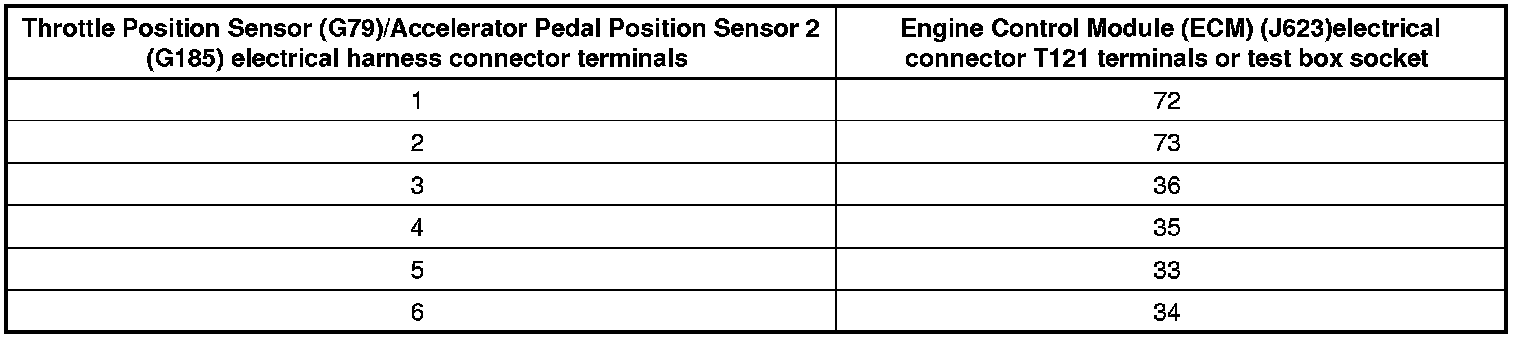

- Using a multimeter, check the Throttle Position Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185) electrical harness connector terminals to the Engine Control Module (ECM) (J623) electrical connector T121 for resistance.










Specified value: 1.5 ohms max.

If the specification is Not obtained:

- Check the wiring for a short circuit to each other, Battery (+) and Ground.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and the voltage supply was OK:

- Replace the Throttle Position Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185).

If no malfunction is found in wiring:

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

- Perform a road test to verify repair.

If the DTC does Not return:

Generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

If the DTC returns, no malfunction is found in the wiring and voltage supply was OK:

- Replace the Engine Control Module (ECM) (J623). Refer to the Repair Information.

- Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
