Heated Oxygen Sensor Bank 2 Sensor 1 Checking

Heated Oxygen Sensor Bank 2 Sensor 1 Checking

• When servicing terminals in the electrical harness connector of Heated Oxygen Sensor (HO2S) 2 (G108), use only gold-plated terminals.

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• Fuse (SB11) OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position "P" or "N".

• A/C switched off.

• Ground connections between engine/transmission/chassis OK.

• Ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

- Perform the function test in Diagnostic Mode 06. Refer to => [ Diagnostic Mode 06 - Read Test Results for Specific Diagnostic Functions ] Diagnostic Modes 01 - 09.

- Switch ignition Off.

If the specified values are Not obtained:

Checking primary voltage

- Remove the air filter.

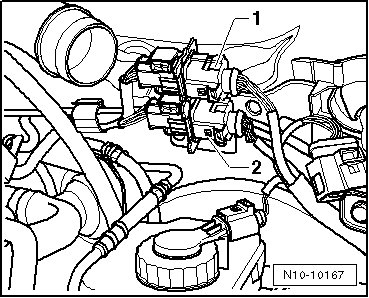

- Disconnect the Heated Oxygen Sensor (HO2S) 2 (G108) electrical harness connector - 2 -.





- Using a multimeter, check the Heated Oxygen Sensor (HO2S) 2 (G108) electrical harness connector - 2 - terminals 1 to 5 for voltage.





Specified value: 0.400 to 0.500 Volts

- Switch the ignition Off.

If the specified value was Not obtained:

- Replace Heated Oxygen Sensor (HO2S) 2 (G108).

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Engine Control Module (ECM) (J623). Refer to the Repair Information.

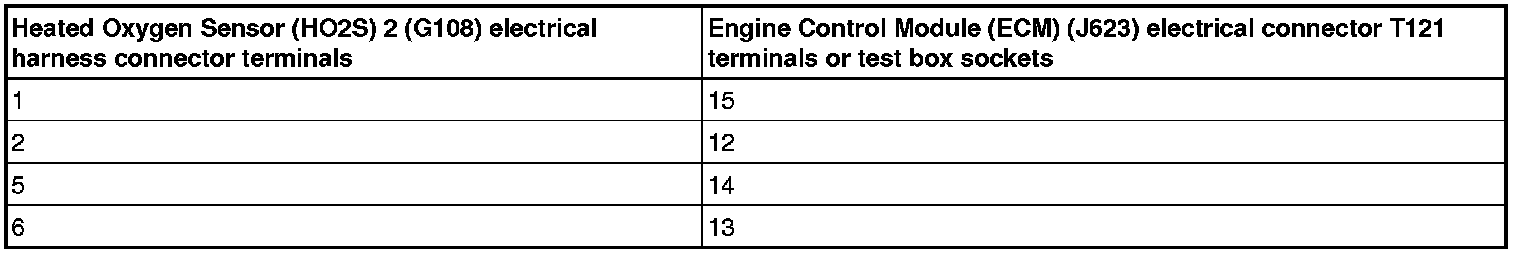

- Using a multimeter, check the Heated Oxygen Sensor (HO2S) 2 (G108) electrical harness connector terminals to the Engine Control Module (ECM) (J623) electrical harness connector T121 terminals for resistance.










Specified value: 1.5 ohms Max.

If the specification was Not obtained:

- Check the wiring for an open circuit, high resistance, a short circuit to each other, Battery (+) or Ground.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specification was obtained:

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

- Perform a road test to verify repair.

If the DTC does not return:

Generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

If the DTC returns, no malfunction is found in the wiring and the voltage supply was OK:

- Replace the Engine Control Module (ECM) (J623). Refer to the Repair Information.

- Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
