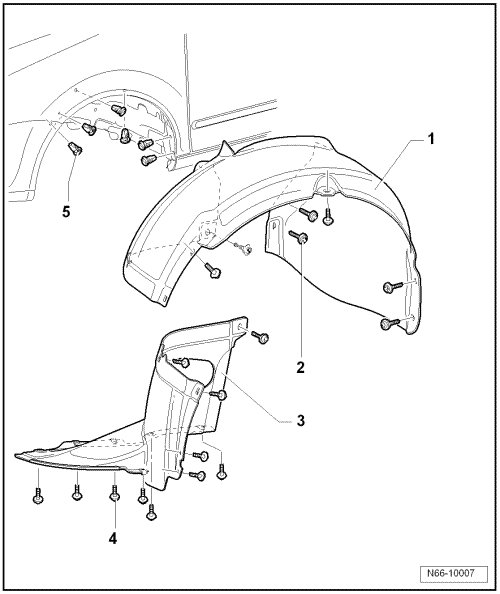

Front Wheel Housing Liner Assembly Overview

Front Wheel Housing Liner Assembly Overview

• The illustration shows the left side. It can also be applied to the right side.

• Depending on the model, there may be small differences when removing and installing.

• Front wheel housing liner consists of front and rear parts.





1 Rear part of wheel housing liner

• Material - PP/EPDM

2 Bolt

• Qty. 7

• 2 Nm

3 Front part of wheel housing liner

• Material - PP/EPDM

4 Bolt

• Qty. 11

• 2 Nm

5 Expanding nut

• Qty. 6
