Power Locks: Service and Repair

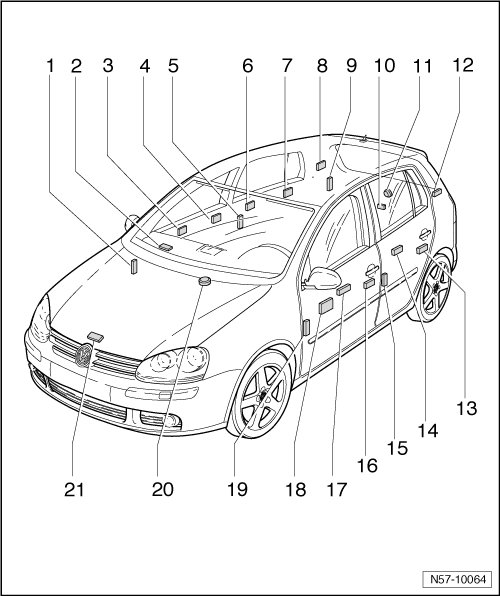

Central Locking System Component Location Overview





1 Coupling station

• Location: A-pillar, right

• To disconnect harness connector, release bellows at pillar => [ Door ] Rear Door

2 Comfort System Central Control Module -J393-

• Location: below passenger side instrument panel, behind glove compartment

• Removing

3 Front Passenger's Door Control Module -J387-

• Integrated in window regulator motor.

4 Door lock

• Door lock is secured to inner door part.

• Electrical central locking system is integrated in door lock.

• Removing => [ Door Lock ] Front Door Lock

5 Coupling station

• Location: B-pillar, right.

• To disconnect harness connector, release bellows at pillar => [ Door ] Rear Door

6 Right Rear Door Control Module -J389-

• Integrated in window regulator motor.

7 Door lock

• Door lock is secured to inner door part.

• Electrical central locking system is integrated in door lock.

• Removing => [ Door Lock ] Front Door Lock

8 Right rear lid connector station

• Location: behind C-pillar trim.

• Removing and installing

9 Fuel Tank Lid Unlock Motor -V155-

• Location: behind right luggage compartment trim.

• Removing => [ Actuator ] Service and Repair

10 Rear lid lock

• Location: screwed to rear lid.

• Removing => [ Rear Lid Lock ] Service and Repair

11 Unlocking element with button

• Location: screwed into rear lid.

• Removing => [ Rear Lid Release Element ] Service and Repair

12 Left rear lid connector station

• Location: behind C-pillar trim.

• Removing and installing

13 Door lock, LR

• Door lock is secured to inner door part.

• Electrical central locking system is integrated in door lock.

• Removing => [ Door Lock ] Rear Door Lock

14 Left Rear Door Control Module -J388-

• Integrated in window regulator motor.

15 Coupling station

• Location: Left B-pillar.

• To disconnect harness connector, release bellows at pillar => [ Door ] Rear Door

16 Door lock, LF

• Door lock is secured to inner door part.

• Electrical central locking system is integrated in door lock.

• Removing => [ Door Lock ] Front Door Lock

17 Central switch for window regulator

• Location: installed in door trim

• Remove and installing central window regulator switch

18 Driver's Door Control Module -J386-

• Integrated in window regulator motor.

19 Coupling station

• Location: Left A-pillar.

• To disconnect harness connector, release bellows at pillar => [ Door ] Rear Door

20 Alarm signal horn

• Location: under the right fender.

• Removing

21 Front Hood Switch -F266-

• Anti-theft warning system contact switch.

• Location: On lid lock.

• Removing
