Removal and Replacement

Lock Carrier with Attachments

Removing

• The lock carrier is a safety-related component so it must not be serviced.

• Replace the lock carrier if it is damaged.

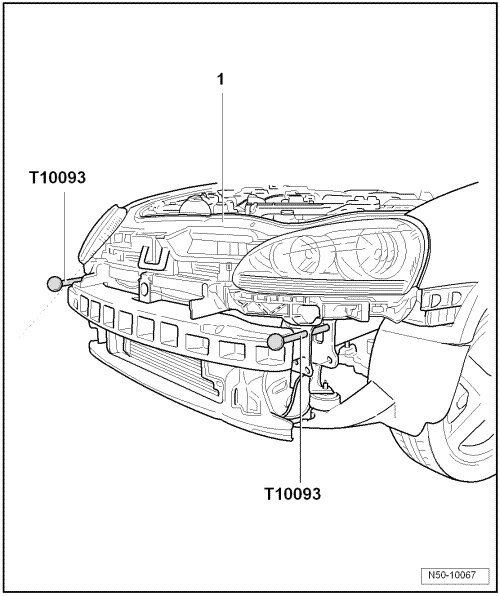

- Perform service position of lock carrier with attachments - 1 -. => [ Service Position, Setting ] Lock Carrier Service Position

- Disconnect the electrical harness connectors present.

- Drain coolant and disconnect coolant lines

- Disconnect condenser lines

- With a second technician, remove guide rod (T 10093) on longitudinal member on left and right sides and lift out lock carrier.

CAUTION!
If lines for A/C system and/or for coolant are disconnected, the powertrain aggregate must no longer be started.

• Do not hang condenser and hydraulic oil cooler on hoses.

• Lines for condenser and hydraulics must not be kinked.

Installing

To install, perform the steps used for removal in reverse order.

• Make sure that all plug- and hose connections are corrected installed when re-assembling.

- Center the lock carrier on the longitudinal members and between the fenders
