Noise Insulation Assembly Overview

Noise Insulation Assembly Overview

Special tools, testers and auxiliary items required

• Torque wrench 2 to 10 Nm (V.A.G 1783)

• Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.

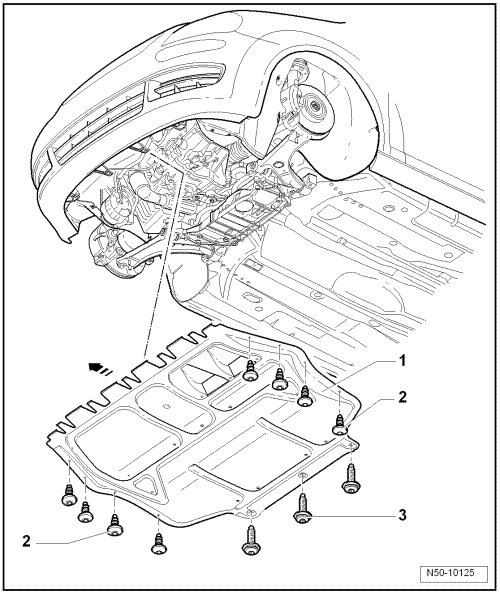

1 Noise Insulation

• - Arrow - points in direction of travel.

• Removing:

- Remove bolts - 2 - and - 3 -.

2 Bolt

• Qty. 8

• 2 Nm

3 Bolt

• Qty. 3

• 6 Nm
