Engine, Securing on Assembly Stand

Engine, Securing on Assembly Stand

Special tools, testers and auxiliary items required

• Lifting Tackle (3033)

• Shop Crane (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

• Engine Lateral Bracket (T03001)

• Transport Arm (T03002)

For performing work, secure the engine using (T03001) to the (VAS 6095).

- Remove the transmission

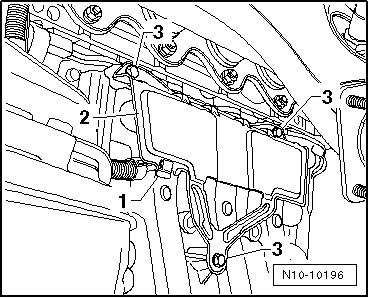

- Remove clamp - 1 - for wiring harness, remove bolts - 3 - and remove the shield- 2 -.

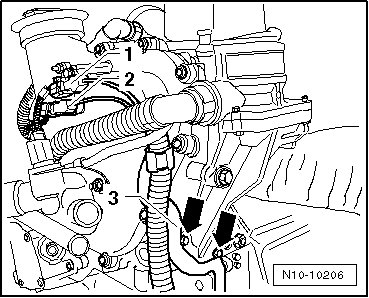

- Disconnect harness connectors - 1 and 2 - and remove the bracket bolts - 3 - - arrow -.

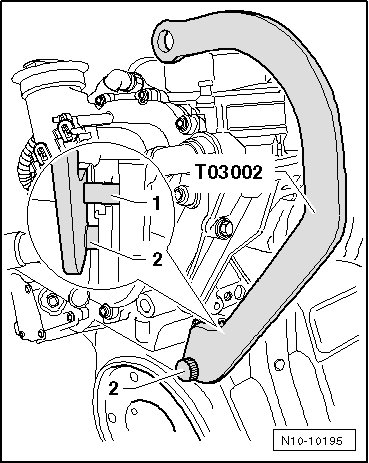

- Install the (T03002) as shown.





The pin - 1 - engages in the cylinder block. Tighten the knurled bolt - 2 - hand tight.

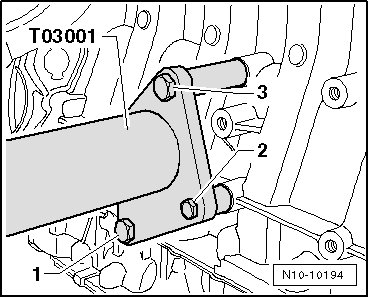

- Install the (T03001).





Tighten bolts - 1 and 3 - to 40 Nm, and bolt - 2 - to 25 Nm.

• Bolts are designed so that they cannot be lost.

• When removing, the (T03001) must be held at tension in direction of withdrawal, otherwise the bolt - 1 - cannot be removed.

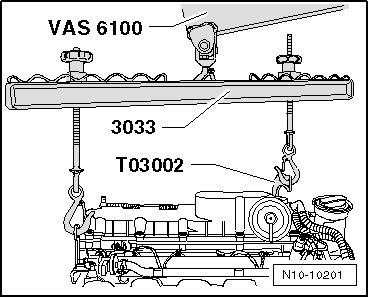

- Install the (3033) as shown and lift using the (VAS 6100) from (V.A.G 1383A).





- Secure engine on the (VAS 6095).
