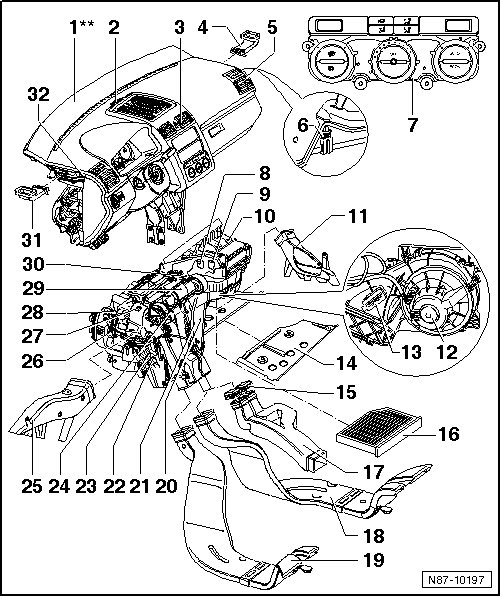

Climatronic A/C System with Automatic Control Component Overview
Climatronic A/C System with Automatic Control Component Overview
• Disconnect battery before removing components marked with **.
• A data plate indicates the refrigerant used and capacity.
1 Dash panel **
• Removing and installing
2 Sunlight Photo Sensor (G107) or Sunlight Photo Sensor 2 (G134)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Tasks: controls temperature door and fresh air blow depending on light intensity
• Emergency running in event of failure: Climatronic Control Module (J255) utilizes a fixed value
• Removing and installing => [ Sunlight Photo Sensors ] Service and Repair
3 Center vents
• Removing and installing => [ Center Vent ] Vents
4 Right side vent
5 Air outlet
• Removing and installing => [ Right or Left Vent ] Vents
6 Right Vent Temperature Sensor (G151)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Left and Right Vent ] Service and Repair
7 Climatronic Control Module (J255)
• The Climatronic Control Module (J255) and the A/C Control Head (E87) are one component that cannot be disassembled.
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ A/C Display Control Head with Climatronic Control Module ] A/C Display Control Head with Climatronic Control Module
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
8 Vehicles through 04.07 air flow door motor ( V71); from 05.07 fresh air/recirculating air/back pressure Door motor position sensor (V425)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Air Flow, through 04.07 ] Climatronic Control Motors on vehicles through 04.07
• Removing and installing => [ Fresh Air/Recirculating Air/Back Pressure, from 05.07 ] Climatronic Control Motors on vehicles from 05.07
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
9 Vehicles through 04.07 recirculation door motor (V113), from 05.07 the recirculation door motor (V113) is discontinued.
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Recirculation ] Climatronic Control Motors
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
10 Fresh Air Intake Duct Temperature Sensor (G89 )
• only installed on vehicles through 12/05
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Function: Temperature sensor controls temperature door and fresh air blower depending on temperature
• for removal, remove instrument panel
11 Right footwell vent
• Removing and installing => [ Right Footwell Vent ] Vents
12 Fresh Air Blower (V2) with Fresh Air Blower Control Module (J126)
• on vehicles from 11/05, Fresh Air Blower Control Module (J126) can be replace separately
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Fresh Air Blower (V2), removing and installing => [ Fresh Air Blower ] Service and Repair
• Fresh Air Blower Control Module (J126), removing and installing => [ Fresh Air Blower Control Module ] Fresh Air Blower Control Module
13 Connector
14 Heating unit partition
• Removing => [ Removing ] Heating Unit Partition
15 Sealing caps
• Only in vehicles without air guide to vent installed in center console at rear
16 Dust and pollen filter
• With activated charcoal filter
• Removing and installing => [ Dust and Pollen Filter ] [1][2]Dust and Pollen Filter
17 Center console air duct connection (optional)
• To remove, center console must be removed
18 Rear channel for right footwell
• Removing and installing => [ Rear Footwell Channel ] Vents
19 Rear channel for left footwell
• Removing and installing => [ Rear Footwell Channel ] Vents
20 Evaporator Temperature Sensor (G308) or Evaporator Vent Temperature Sensor (G263)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• One or both of the component designations will appear, depending on software. The tasks are the same.
• Removing and installing => [ Evaporator Vent ] Service and Repair
21 Right Temperature Door Motor (V159)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Right Temperature ] Climatronic Control Motors
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
22 Auxiliary Heater Heating Element (Z35)
• Only installed on vehicles with Diesel engine without auxiliary water heater
23 Heat exchanger
• Removing and installing => [ Heat Exchanger ] Service and Repair
24 Central Air Door Motor (V70)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Central Air ] Climatronic Control Motors
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
25 Left footwell vent
• Removing and installing => [ Left Footwell Vent ] Vents
26 Left Temperature Door Motor (V158)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Left Temperature ] Climatronic Control Motors
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
27 Left Footwell Vent Temperature Sensor (G261)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing => [ Left Footwell Vent ] Service and Repair
28 Defroster Door Motor (V107)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Defroster ] Climatronic Control Motors
• Replacing: Initiate Basic Setting function with Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model) => [ Climatronic A/C System with Automatic Control, Checking and Adjusting ] Climatronic A/C System with Automatic Control, Checking and Adjusting
29 Heating and A/C unit
• Removing and installing => [ Heating and A/C Unit ] Heating and A/C Unit
• Disassembling and assembling => [ Climatronic Heating and A/C Unit ] Climatronic Heating and A/C Unit
30 Right Footwell Vent Temperature Sensor (G262 )
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing => [ Right Footwell Vent ] Service and Repair
31 Left side vent
32 Left Vent Temperature Sensor (G150)
• Checking, use: Vehicle Diagnosis, Testing and Information System (VAS 5051) (or succeeding model)
• Removing and installing => [ Left and Right Vent ] Service and Repair
