Rear Interior and Reading Lamp, With Antitheft Alarm System

Roof Trim Lamps and Switches

Rear Interior and Reading Lamp, with Antitheft Alarm System

• If rear interior and reading light is removed, anti-theft warning system must be deactivated. Refer to=> [ Antitheft Alarm System, Activating and Deactivating, through 05.06 ] .

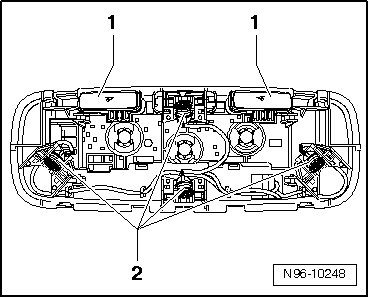

• Switch - 1 - for reading lights are integrated in the rear interior and reading lights and cannot be replaced individually.





• Antitheft Alarm System Ultrasound Sensor (G209) - 2 - cannot be replaced individually.

• Antitheft Alarm System Ultrasound Sensor (G209), consisting of 4 individual sensors - 2 -, wires and one control element on rear side of interior and reading lights, must not be moved out of their preset position.

Removing

- Turn off the ignition and all electrical consumers.

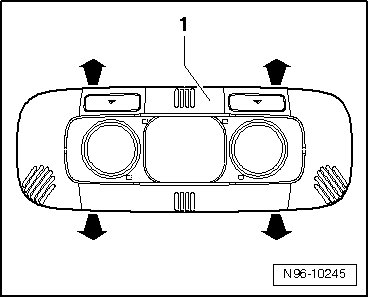

- Pull out complete panel - 1 - (with diffusion lens and reflectors) vertically downward - arrows - from interior and reading light.

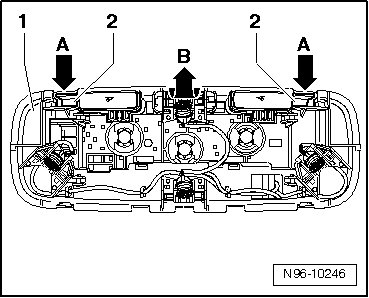

- Press both retaining tabs - 2 - in - direction of arrow A - and remove complete interior and reading light - 1 - in - direction of arrow B - out of molded headliner.

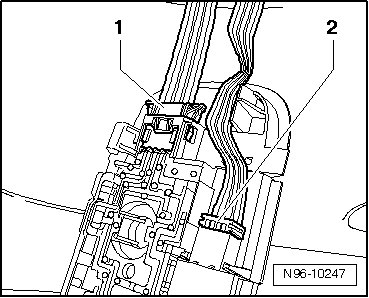

- Disengage harness connectors - 1 - and - 2 - and disconnect both harness connectors.





Installing

Install in reverse order of removal.
