Relay Arrangements On Electronics Box Low

Relay

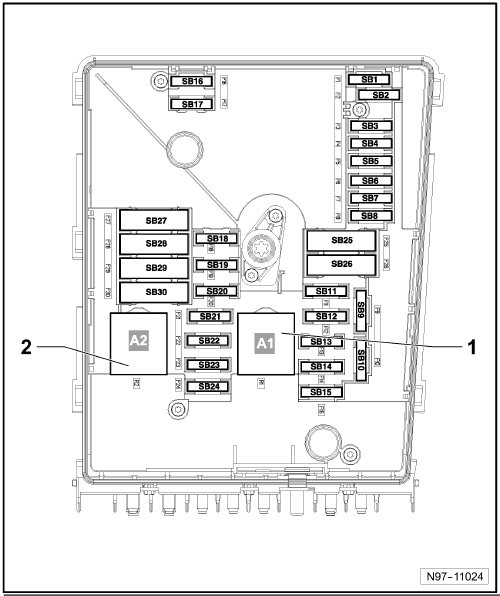

Relay Arrangements on Electronics Box Low







1 - Power Supply Relay (terminal 30) -J317- (458)
• Connection A1

1 - Power Supply Relay (terminal 30) -J317- (100)
• Connection A1

1 - Power Supply Relay (terminal 30) -J317- (370)
• Connection A1

2 - Secondary Air Injection (AIR) Pump Relay -J299- (100)
• Connection A2

2 - Voltage Monitoring Sensor -G582- (488)
• Connection A2
• Through May 2006
• Only engine code BLG

2 - Connection bridge
• Connection A2
• Only diesel engines
• The relay identification number (370) replace the relay identification
number (100) (depend on production).
