Vehicle Diagnosis Tester, Connecting

Vehicle Diagnosis Tester, Connecting

Special tools, testers and auxiliary items required

• Vehicle Diagnosis, Testing & information System (VAS5051B)Vehicle tester

• Diagnostic cable (VAS 5051/6A) (5 m)

• Diagnostic cable (VAS 5051/5A) (3 m)

• Follow the current operating instructions for the vehicle diagnosis, testing and information system, which can be displayed by selecting the "Administration" and "operator's handbook" buttons.

• For the diagnostic, only the diagnostic cables listed above are to be used since only these are equipped with CAN wires and permit a CAN diagnostic or CAN communication.

Connect the (VAS5051B):

- Apply the parking brake.

- In vehicles with automatic transmission, move the selector lever to the "P" or "N" position.

- In vehicles with manual transmissions, move the shift lever to the neutral position.

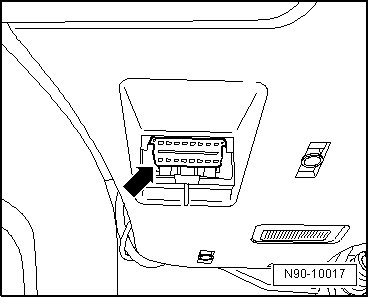

- With the ignition switched off, connect the (VAS5051B) with the (VAS 5051/6A) to the data link connector in the vehicle - arrow -.





- Switch on ignition.

- Switch off all electrical consumers.

• /The connection of all other and the following diagnostic operation system or vehicle diagnosis and service system occurs in the previously described sequence.
