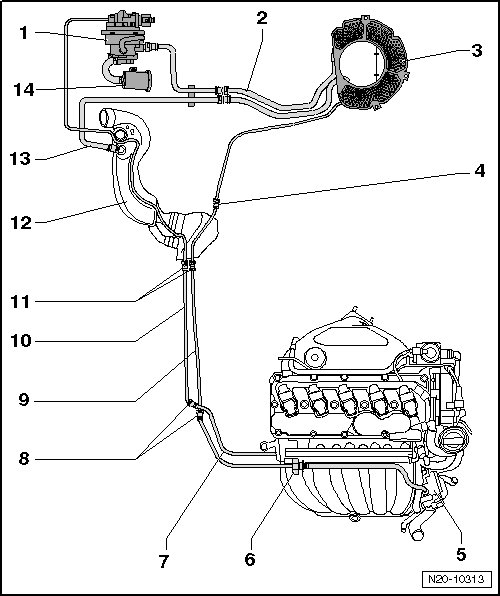

EVAP System Overview

EVAP System Overview





1 Leak detection pump (LDP) (V144)

• Component location: Under wheel housing liner in right rear wheel housing

• Checking

• Removing and installing => [ Leak Detection Pump ] Service and Repair

2 Connecting line

• From Leak Detection Pump (LDP) (V144) to EVAP canister

• Clipped in on bracket

3 EVAP canister

• Component location: Bottom of spare wheel well

• A filter is also installed with engine codes BGQ and CBUA => [ (Item 1) EVAP filter ] EVAP System Assembly Overview.

• Removing and installing => [ EVAP Canister ] EVAP Canister

4 Separating point

• At right rear on fuel tank

5 Throttle valve control module (J338)

Removing and installing => [ Throttle Valve Control Module ] Service and Repair

6 Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 (N80)

• Checking

7 Vacuum line

• Connected to intake manifold

8 Separating point

• At right, front in engine compartment under coolant expansion tank

9 Vent line

• White

• From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve (N80)

• Installation position: at right on underbody

• Secured to fuel tank

10 Vacuum line

• Green

• From engine to Leak Detection Pump (LDP) (V144 )

• Installation position: at right on underbody

• Secured to fuel tank

11 Separating point

• At right, front on fuel tank in area of fuel filter

12 Fuel Filler Tube

13 Vent line

• From filler connection to EVAP canister

14 Air filter housing

• For Leak detection pump (LDP) (V144)
