Crankshaft, Cylinder Block - Fastener Tightening Specifications

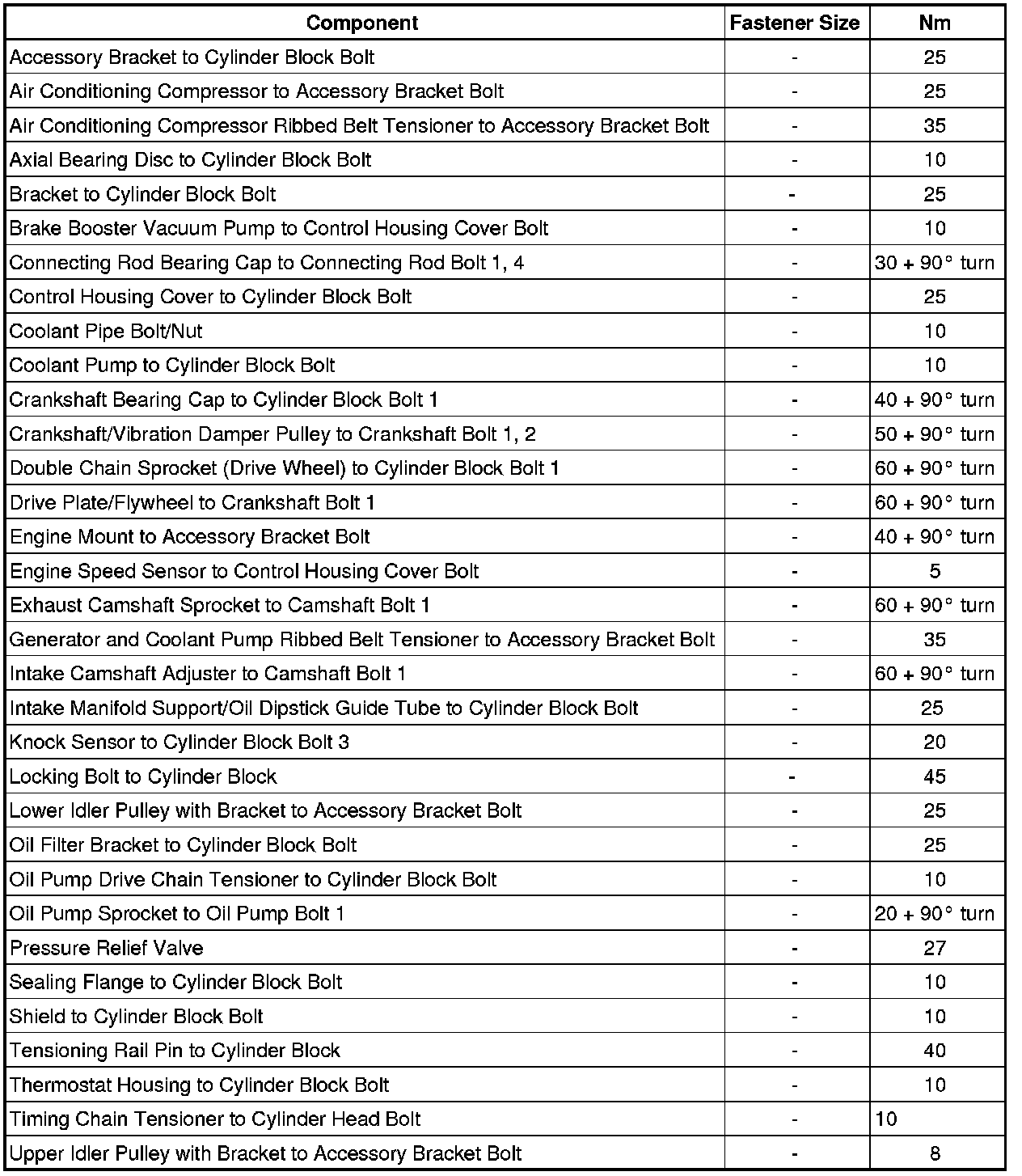

Fastener Tightening Specifications





• 1 Always replace

• 2 Only use a strength category 10.9 bolt

• 3 Tightening specification affect the function of the knock sensor

• 4 Lubricate the threads and contact surface
