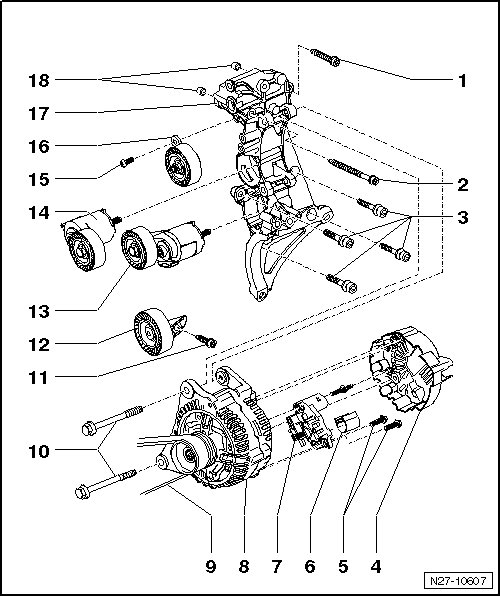

Generator Assembly Overview, 2.5L

Generator Assembly Overview, 2.5L





1 Multi-point socket head bolt

• M8 x 60

• 25 Nm

2 Multi-point socket head bolt

• M8 x 110

• 25 Nm

3 Socket head bolts

• M8 x 30

• 25 Nm

• Qty. 4

4 Protective cap for generator

5 Phillips head screws

• M4 x 20

• 2 Nm

6 Protective cap for carbon brushers

7 Voltage regulator

• Removing and installing voltage regulator, refer to=> [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo

8 Generator

• Generator, removing and installing, refer to => [ Generator, 2.5L ] Generator, 2.5L

• Generator (GEN), checking, refer to => [ Generator, Checking ] Testing and Inspection

• Securing B+ wire to generator, refer to => [ B+ Cable Mount On Generator ] B+ Cable Mount On Generator

• Generator ribbed belt pulley, removing and installing, refer to => [ Ribbed Belt Pulley with Freewheel, Valeo ] Ribbed Belt Pulley with Freewheel, Valeo

9 Ribbed belt

• Ribbed belt routing, refer to => [ Ribbed Belt, Routing, 2.5L ] Ribbed Belt, Routing, 2.5L

• Ribbed belt, checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection

10 Collar bolts

• M8 x 90

• 25 Nm

• Qty. 2

11 Socket head bolt

• 25 Nm

12 Lower idler pulley with bracket

• For air conditioning compressed ribbed belt

13 Air conditioning compressor ribbed belt tensioner

• Do not remove tensioner

14 Generator and coolant pump ribbed belt tensioner

• Do not remove tensioner

15 Socket head bolt

• M6

• 8 Nm

16 Upper idler pulley with bracket

17 Sub-assembly bracket

• for generator and A/C compressor

18 Centering sleeves

• Qty. 2

without illustration

• M8 B+ line nut to the rear side of the generator - 15 Nm

• M5 wire clamp nut to the rear side of the generator - 3.2 Nm
