Evaporative Emissions System: Service and Repair

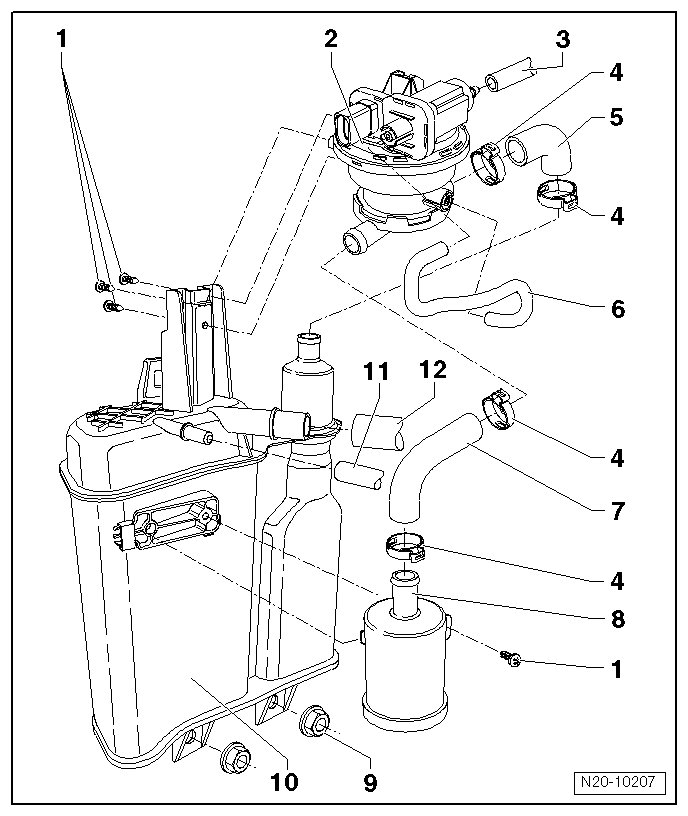

EVAP System Overview






1 Bolt

2 Leak Detection Pump (V144)

3 Vacuum Line

4 Clip

5 Connecting Hose

• Evaporative Emission (EVAP) canister to leak detection pump.

6 Vacuum Hose

7 Connecting Hose

• Air filter to leak detection pump.

8 Air Filter Housing

9 Nut

• 10 Nm

10 EVAP Canister

• Installed location: Inside the right rear wheel housing,

11 Vent Line

• To the EVAP canister purge regulator valve 1.

• Attached to the fuel tank.

12 Vent Line

• From the fuel tank.
