Differential Assembly

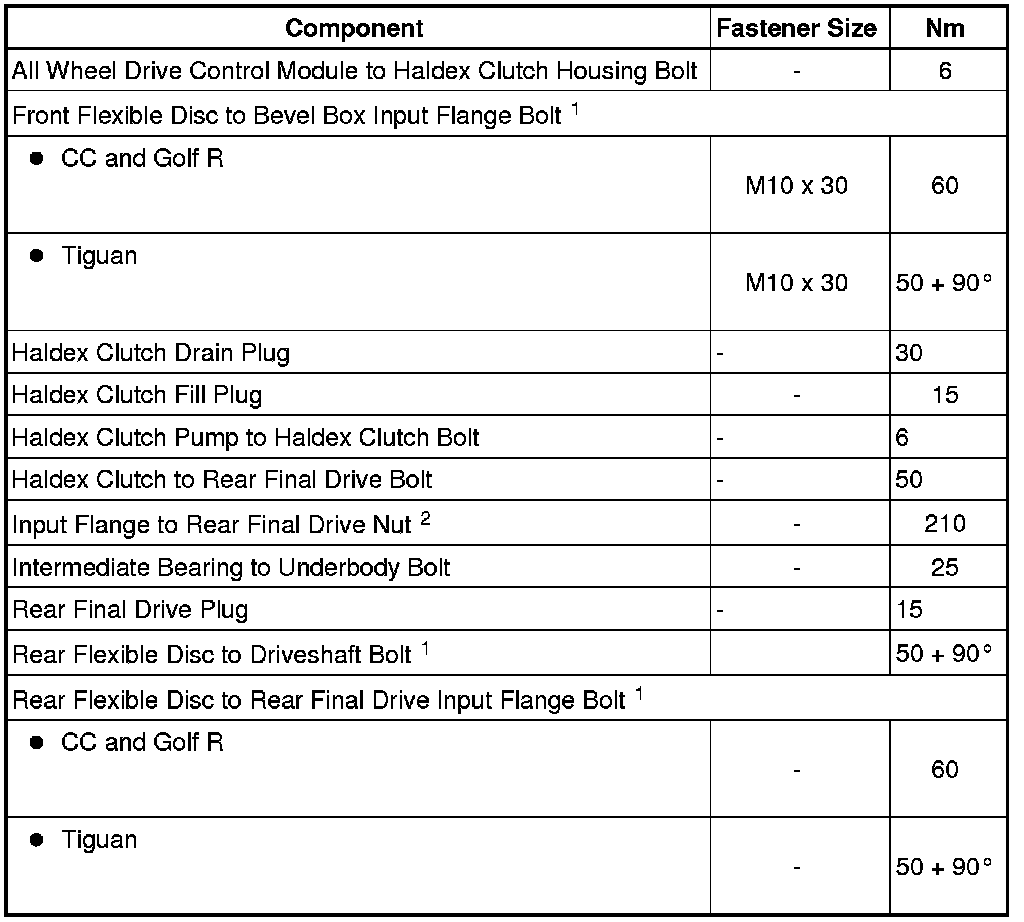

Fastener Tightening Specifications





• 1 Always replace

• 2 Install using liquid locking fluid (D 000 600 A2)
