Premium Sound System (Premium 7)
Premium Sound System (Premium 7)

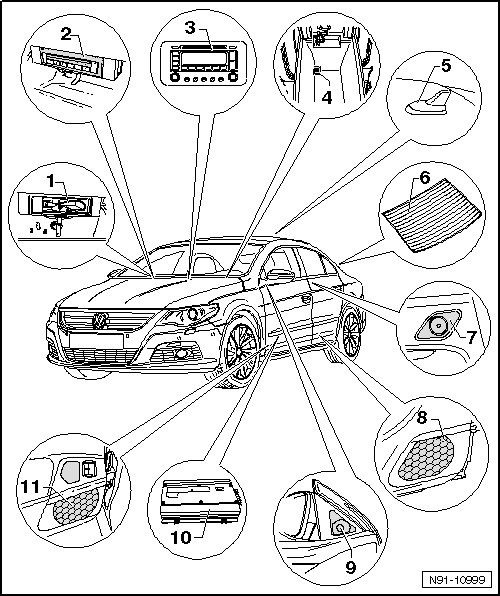

1 External Multimedia Device Interface (R215)
• Located inside the glove compartment.
• Additional information can be found in => [ External Multimedia Device Interface R215 ] External Multimedia Device Interface R215.
• Optional installation of CD changer (R41) or External multimedia device interface (R215). Both systems are not available together because they both use the same installation location.
2 CD Changer (R41)
• 6 disc CD changer
• Located inside the glove compartment.
• Additional information can be found in => [ CD Changer R41 ] Service and Repair.
• Optional installation of CD changer (R41) or External multimedia device interface (R215). Both systems are not available together because they both use the same installation location.
3 Radio (R)
• Premium Sound System
• Removing and installing, refer to => [ Radio/Navigation Systems ] Radio/Navigation Systems.
• Connector overview, refer to => [ Connector Assignments ] [1][2]Connector Views.
• Electronic Anti-Theft System, refer to => [ Premium Sound System (Premium 7) ] Premium Sound System (Premium 7).
4 External Audio Source Connection (R199)
• Located inside the storage compartment under the center armrest.
• Additional information can be found in => [ External Audio Source Connection R199 ] External Audio Source Connection R199.
5 Roof Antenna (RX5)
• Located on the roof at the back of the vehicle.
• Additional information can be found in => [ Antenna System, Standard Version, Overview ] Antenna System, Standard Version, Overview.
• Also optional for satellite radio reception.
6 Rear Window Antenna 1 (R11)
• Installed in the rear window, for radio reception with diversity function.
• Additional information can be found in => [ Antenna System, Standard Version, Overview ] Antenna System, Standard Version, Overview.
7 Right Rear Treble Speaker (R16) and Left Rear Treble Speaker (R14)
• Installed in the door trim panel for the left and right rear door.
• Additional information can be found in => [ Speakers ] Service and Repair.
8 Right Rear Bass Speaker (R17) and Left Rear Bass Speaker (R15)
• Installed in the door trim panel for the left and right rear door.
• Additional information can be found in => [ Speakers ] Service and Repair.
9 Right Front Treble Speaker (R22) and Left Front Treble Speaker (R20)
• Installed in triangle window of left and right front doors.
• Additional information can be found in => [ Speakers ] Service and Repair.
10 Digital Sound System Control Module (R12)
• Installed under the left front seat.
• Additional information can be found in => [ Amplifier R12 ] Service and Repair.
11 Right Front Midrange Speaker (R104) and Left Front Midrange Speaker (R103) , Right Front Bass Speaker (R23) and Left Front Bass Speaker (R21)
• Installed in door trim of left and right front doors.
• Midrange speakers are only installed in conjunction with sound system.
• Midrange and bass speakers are installed as one unit.
• Only the bass speaker is installed here when there is no sound system. Midrange frequencies play through the bass and treble speakers.
• Additional information can be found in => [ Speakers ] Service and Repair.
