Front Wheel Housing Liner Assembly Overview

Front Wheel Housing Liner Assembly Overview

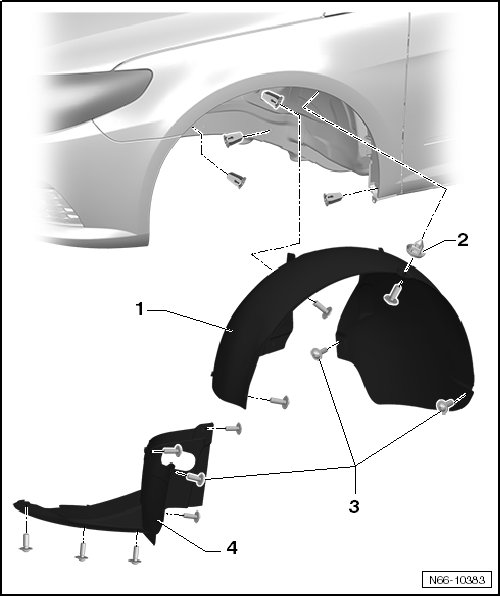

• The illustration shows the left side. The right side is identical.

• Depending on the model, there may be small differences when removing and installing.

• Front wheel housing liner consists of front and rear parts.






1 Rear part of wheel housing liner

• Material - PP/EPDM

• Removing and Installing, refer to => [ Front Wheel Housing Liner ] Front Wheel Housing Liner

2 Expanding nut

• Quantity: 4

3 Bolt

• Quantity: 5

• Tightening specification: 2 Nm

4 Front part of wheel housing liner

• Material - PP/EPDM

• Removing and Installing, refer to => [ Front Wheel Housing Liner ] Front Wheel Housing Liner
