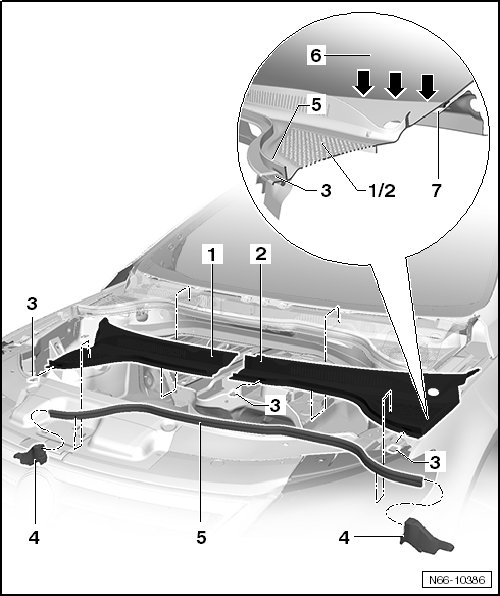

Plenum Chamber Cover Assembly Overview

Plenum Chamber Cover Assembly Overview






1 Right plenum chamber cover

• Removing and Installing, refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover

2 Left plenum chamber cover

• Removing and Installing, refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover

3 Retaining clip

• Quantity: 3

4 Molded foam part

• Left and right

5 Seal

6 Windshield

7 Retainer

• Part of the windshield.
