Exterior Rearview Mirror Assembly Overview

Exterior Rearview Mirror Assembly Overview

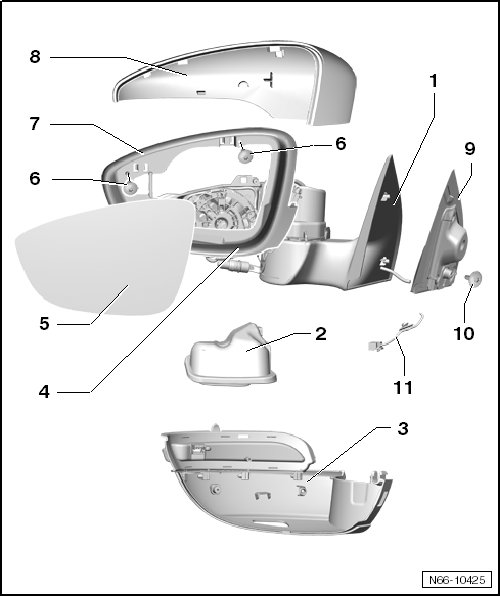

• The illustration shows the left side. The right side is identical.






1 Mirror base plate

• Removing and Installing, refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror

2 Entry lamp

• Installed in the assembly component.

3 Assembly piece

• With turn signal, entry lamp, frame and intermediate piece.

• Removing and Installing, refer to => [ Mirror Cap Assembly Part ] Mirror Cap Assembly Part

4 Bulb for entry lamp

• Installed in the assembly component.

5 Mirror glass

• Removing and Installing, refer to => [ Mirror Glass ] Mirror Glass

6 Bolt

• Quantity: 2

• 1 Nm

7 Trim

• Removing and Installing, refer to => [ Mirror Cap Trim ] Mirror Cap Trim

8 Mirror cap

• Material - ABS

9 Insulation

10 Bolt

• 10 Nm

11 Connector
