Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter

Removing

• There are different versions of the dust and pollen filter (without and with filter insert with activated charcoal). Refer to Electronic Parts Catalog (ETKA).

- Remove the partition from the heater => [ Removing Heater Partition ] Heater Component Location Overview.

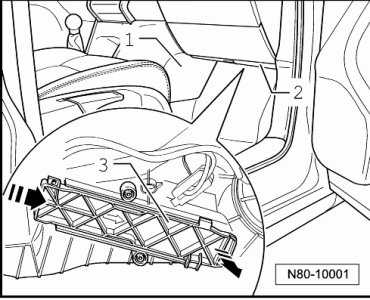

- Release cover - 3 - in direction of arrow.

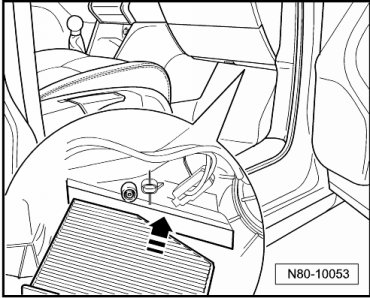

- Remove dust and pollen filter downward out of heater.

Installing

• Note installation position of dust and pollen filter.

Install in reverse order of removal.
