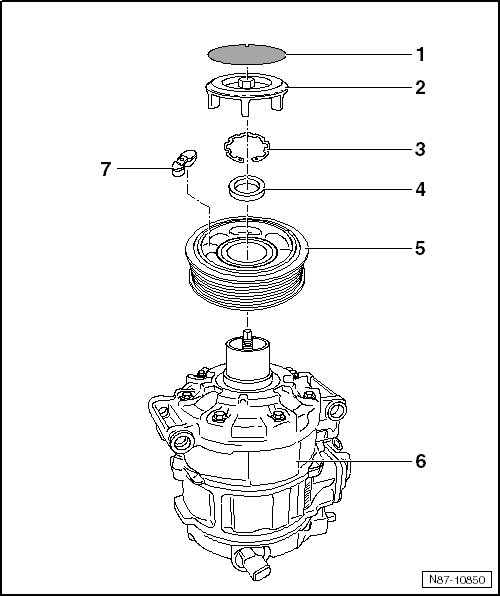

Belt Pulley Assembly Overview, Denso

Belt Pulley Assembly Overview, Denso

• This type of ribbed belt pulley is installed on "7SEU17C" A/C compressor.

• Different versions of the ribbed belt pulley may be installed, depending on A/C compressor construction type and engine version. Refer to Electronic Parts Catalog (ETKA).

• Ribbed belt pulley, removing and installing, refer to => [ Belt Pulley, Denso ] Belt Pulley, Denso.






1 Cap With Locking Ring

• Remove carefully using a small screwdriver or needle-nose pliers (pay special attention to ribbed belt pulley when doing this)

2 Drive Plate

3 Circlip

• Always replace

• Install on correct side (flat side toward A/C compressor)

4 Spacer

5 Ribbed Belt Pulley

• The ribbed belt pulley is made of plastics and is sensitive to impact, be especially careful when handling it.

• Different versions. Refer to Electronic Parts Catalog (ETKA).

6 A/C Compressor

• Depending on engine and market version, different versions can be installed. Refer to Electronic Parts Catalog (ETKA).

• Clean A/C compressor flange before sliding on ribbed belt pulley.

7 Rubber Element

• Quantity: 6

• Decouples ribbed belt pulley from A/C compressor input shaft and dampens vibration and noises.

• For installation, lightly coat rubber elements, with, for example, tire mounting paste or a soap solution (as a lubricant).
