Heater Component Location Overview

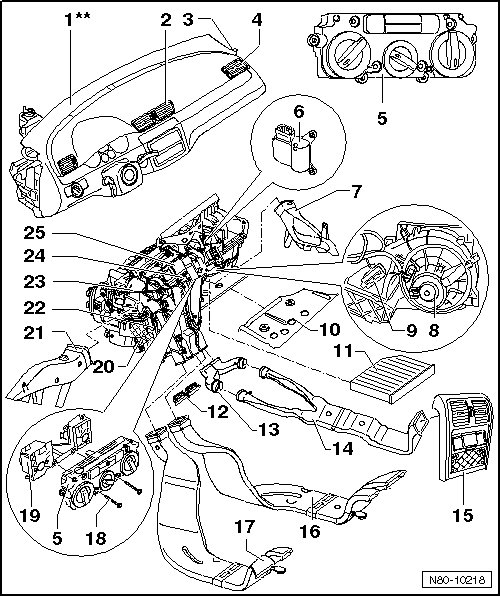

Heater Component Location Overview

Disconnect the battery before removing components marked with a **.





1 Dash Panel **

2 Center Vents

• Removing vents, refer to => [ Front Center Vents ] Front Center Vents.

3 Air Duct To Right Side Vent

4 Passenger Vent

• Removing vents, refer to => [ Driver and Front Passenger Side Vents ] Driver and Front Passenger Side Vents.

5 Fresh Air and Heated Air Controls

• With fresh air/recirculating door switch (E159).

• Removing controls, refer to => [ Display and Control Unit ] Display and Control Unit.

• On vehicles with heated seats also with heated driver seat adjuster (E94) and heated front passenger seat adjuster (E95).

6 Fresh/Recirculating Air Door Motor (V154)

• Removing, refer to => [ Fresh/Recirculated Air Door Motor V154 ] Fresh/Recirculated Air Door Motor V154.

7 Right Footwell Vent

• Removing and installing, refer to => [ Front Passenger Footwell Right Vent ] Front Passenger Footwell Right Vent.

8 Fresh Air Blower (V2)

• Removing, refer to => [ Fresh Air Blower V2 ] Service and Repair.

9 Fresh Air Blower Series Resistor With Fuse (N24)

• Removing and installing, refer to => [ Fresh Air Blower Series Resistor with Fuse N24 ] Service and Repair.

10 Heating Unit Partition

11 Dust and Pollen Filter

• With or without an activated charcoal filter element

• Different versions depending on the vehicle version and equipment level. Refer to Electronic Parts Catalog (ETKA).

• Follow the replacement intervals. Refer to => Maintenance Procedures.

• Removing and installing, refer to => [ Dust and Pollen Filter ] Service and Repair.

12 Cap

• Only in vehicles without air duct to vent installed in center console at rear.

13 Connection

• For air duct, rear vent

• It is necessary to first remove the center console in order to remove the connection.

14 Rear Vent Air Duct

15 Rear Vent

16 Right Footwell Rear Channel

• Removing and installing, refer to => [ Rear Channel, Footwell ] Rear Channel, Footwell.

17 Left Footwell Rear Channel

• Removing and installing, refer to => [ Rear Channel, Footwell ] Rear Channel, Footwell.

18 Screw

• Quantity: 8

19 Adapter for Controls

20 Heater Core

• Change the coolant after replacing the heater core.

• Removing and installing, refer to => [ Heater Core ] Heater Core.

21 Left Footwell Vent

• Removing and installing, refer to => [ Driver Footwell Vent ] Driver Footwell Vent.

22 Auxiliary Heater Heating Element (Z35)

• Not applicable to the US or Canada

23 Temperature Door Cable

• Removing and installing, refer to => [ Temperature Door Release Cable ] Temperature Door Release Cable.

24 Flexible Shaft

• Removing and installing, refer to => [ Flexible Air Distribution Shaft ] Flexible Air Distribution Shaft.

25 Heater

• Removing and installing, refer to => [ Heater ] Heater.

• Disassembling and assembling, refer to => [ Heater, Disassembling and Assembling ] Heater, Disassembling and Assembling.

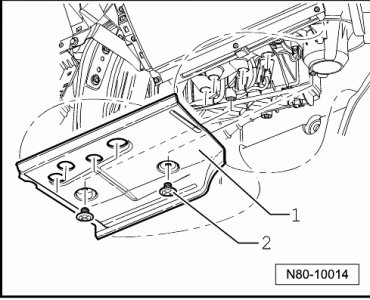

Removing Heater Partition





- Remove the plastic screws - 2 - and the partition- 1 -.
