Luggage Compartment Overview

Luggage Compartment Overview

Risk of injury. Refer to => [ Warnings and Safety Precautions ] Service Precautions.

In order to prevent damage to the battery or vehicle, observe battery type descriptions and notes. Refer to => [ Battery Types ] Battery Types.

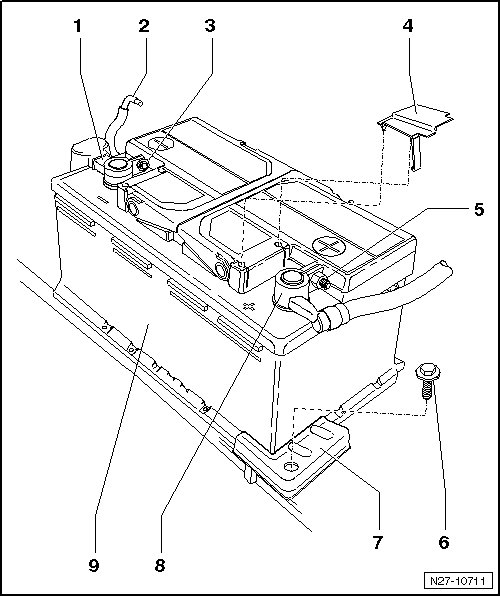

1 Battery Terminal Ground Cable

• Read and follow the information about the battery terminal threaded connection.

2 Hose for the Central Venting System

• Follow the installation instructions.

3 Nut for Ground Cable

• 6 Nm

• M6

4 Positive Terminal Cover

5 Nut for Positive Cable

• 6 Nm

• M6

6 Clamping Plate Bolt

• 35 Nm

• M8 x 35

7 Clamping Plate

8 Battery Terminal Positive Cable

• Read and follow the information about the battery terminal threaded connection.

9 Battery

• Removal and installation, refer to => [ Battery, Removing and Installing ] Battery, Removing and Installing.
