2.0L

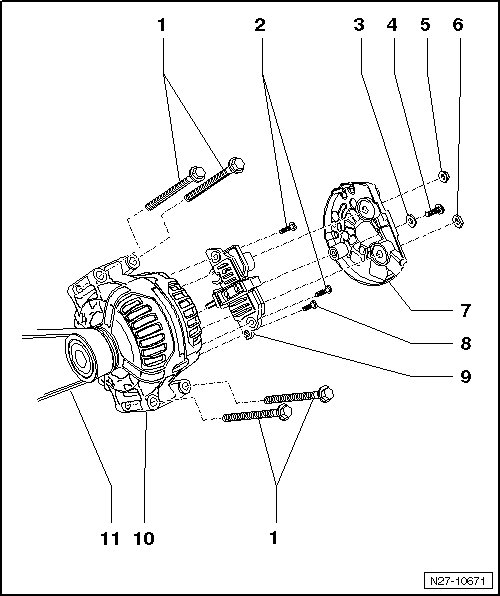

Generator Overview






1 Hexagon Head Flange Bolt

• 20 Nm

• M8 x 110

2 Phillips Head Screw

• 2 Nm

• M4 x 19

3 Washer

• M5

4 Phillips Head Screw

• 4.5 Nm

• M5 x 21

5 Hex Head Nut

• 15 Nm

• M8

6 Hex Nut, Flat

• M8

7 Cap

8 Phillips Head Screw

• 2 Nm

• M4 x 13

9 Voltage Regulator

• Removing and installing voltage regulator, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

10 Generator

• Generator, removing and installing, refer to => [ Generator ] Generator.

• Checking generator, refer to => [ Generator, Checking ] Testing and Inspection.

• Securing B+ wire to generator, refer to => [ B+ Cable Mount on Generator ] Procedures.

• Removing and installing ribbed belt pulley, refer to => [ Ribbed Belt Pulley without Freewheel ] Ribbed Belt Pulley without Freewheel, => [ Ribbed Belt Pulley with Freewheel, Bosch ] Ribbed Belt Pulley with Freewheel, Boschor => [ Ribbed Belt Pulley with Freewheel, Valeo ] Ribbed Belt Pulley with Freewheel, Valeo.

11 Ribbed Belt

• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.
