3.6L

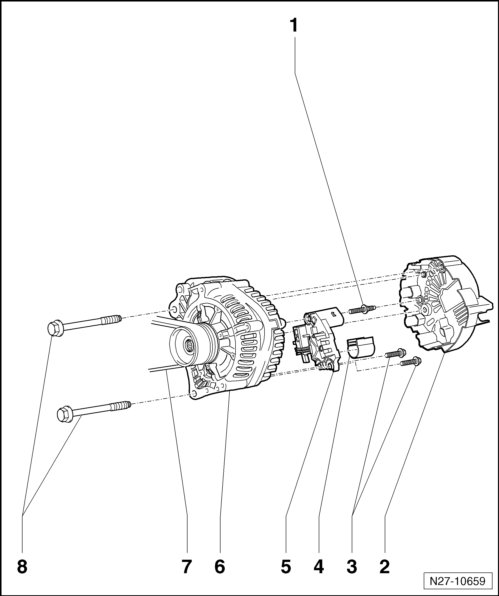

Generator Overview






1 Hex Bolt With Washer and Threaded Piece

• 2 Nm

• M4 x 20, M4 x 15

2 Protective Cap For Generator

Wiring bracket to the Generator

• 3 Nm

• M5

3 Phillips Head Screws

• 2 Nm

• M4 x 20

4 Protective Cap For Carbon Brushes

5 Voltage Regulator

• Removing and installing voltage regulator, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

6 Generator

• Generator, removing and installing => [ Generator ] Generator.

• Checking, refer to => [ Generator, Checking ] Testing and Inspection.

7 Ribbed Belt

• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.

8 Collar Bolts

• 20 Nm

• M8 x 90
