2.0L DSG

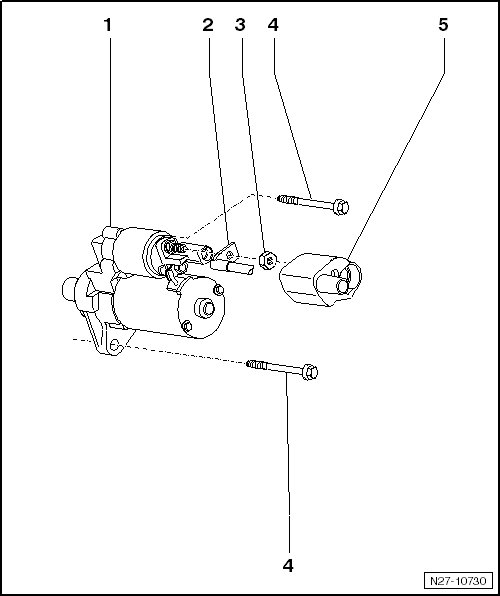

Starter Overview






1 - Starter

• Removing and installing, refer to => [ Starter ] Starter.

• Checking, refer to => [ Starter, Checking ] Testing and Inspection.

2 - Connection, B+ Wire to Starter

3 - Nut, B+ Wire to Starter

• 15 Nm

• M8

4 - Starter Bolts

• 80 Nm

• M12

5 - Cap

- - Mounting Bolt, Air Filter Housing To Body

• 10 Nm

• Without illustration
