3.6L

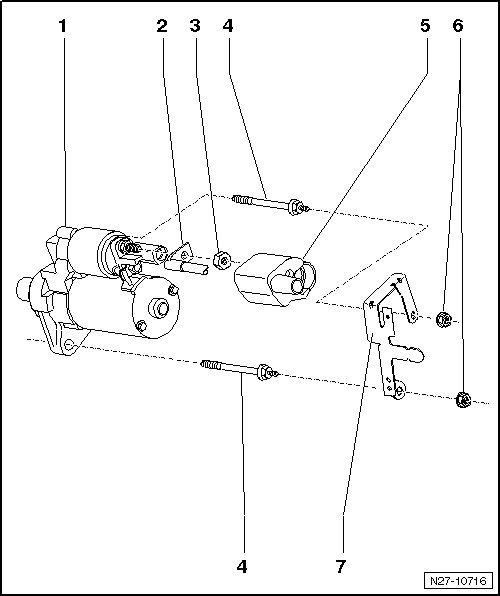

Starter Overview






1 Starter

• Removing and installing, refer to => [ Starter ] Starter.

• Checking, refer to => [ Starter, Checking ] Testing and Inspection.

2 Connection, B+ Wire to Starter

3 Nut, B+ Wire to Starter

• 15 Nm

• M8

4 Starter Bolts

• 75 Nm

• M12

5 Cap

6 Mounting Nuts, Wiring Bracket

• 23 Nm

• M8

7 Cable Holder

8 (Not Illustrated) Air Filter Housing To Body Bolt

• 10 Nm

• M6

9 (Not Illustrated) Ground Wire To Transmission Housing

• 15 Nm

• M8
