Controls, Housing

Special Tools

Special tools, testers and auxiliary items required

• Pipe Cutter (VAS 6056/2)

• Engine Bung Set (VAS 6122)

• Adjusting Plate (3282/56)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Spring Type Clip Pliers (VAS 5024 A)

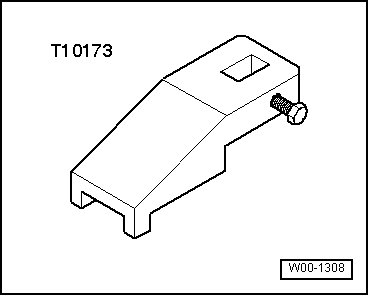

• Setting Gauge (T10173)

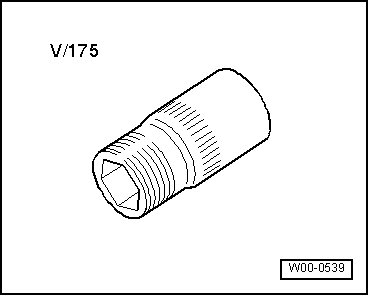

• Socket SW15 (V/175)

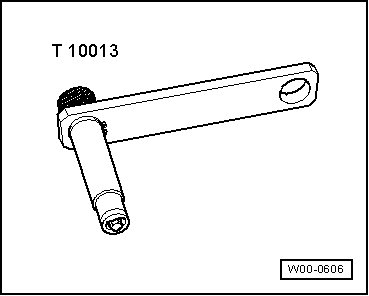

• Bracket (T10013)

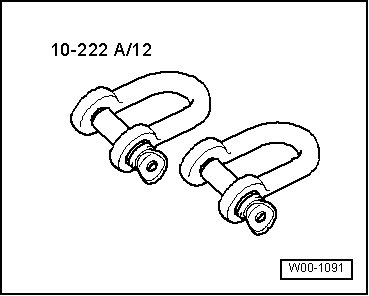

• Shackle (10-222 A/12)

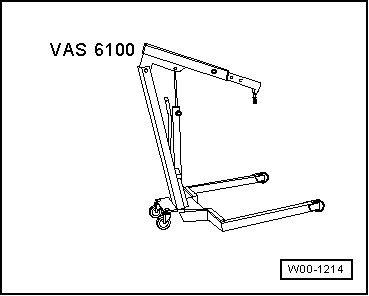

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)











Special tools, testers and auxiliary items required

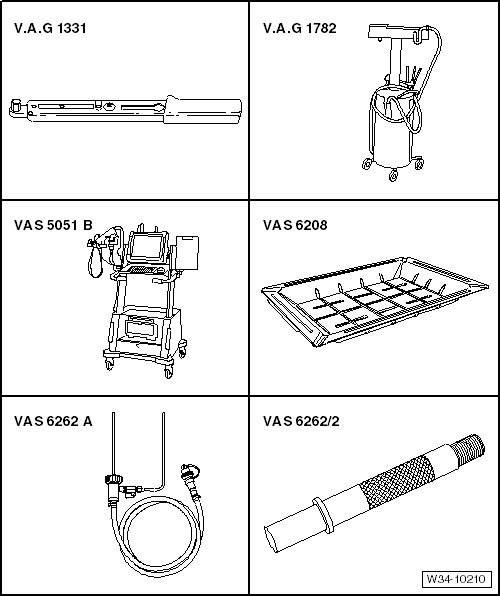

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Used Oil Collecting and Extracting Device (V.A.G 1782)

• Vehicle Diagnosis, Testing and Information System (VAS 5051)

• Drip Tray for VAS 6100 (VAS 6208)

• Adapter for Oil Filling (VAS 6262 A)

• Adapter for Filling ATF Oil (VAS 6262/2)






Special tools, testers and auxiliary items required

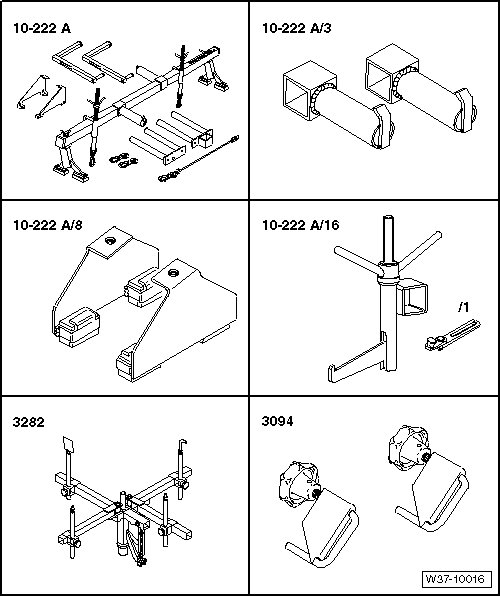

• Engine Support Bridge (10-222 A)

• Engine Support Adapter (10-222 A/3)

• Engine Support Feet (10-222 A/8)

• Adapter (10-222 A/16)

• Transmission Support (3282)

• Hose Clamps up to 25 mm Dia. (3094)
