Automatically Shifted Manual Transmission/Transaxle: Locations

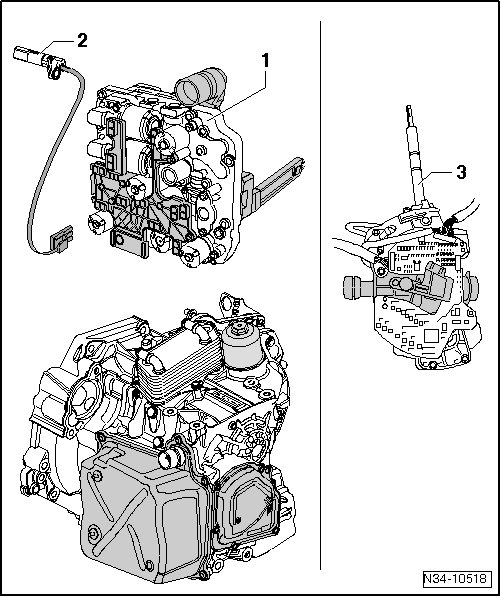

Transmission Overviews

Direct shift gearbox 02E (DSG)







1 - Direct Shift Gearbox (DSG) Mechatronic -J743- => [ Valve Body ] See Image Below.

2 - Transmission Input Speed (RPM) Sensor -G182- and Clutch Oil Temperature Sensor -G509- => [ Transmission Input Speed (RPM) Sensor and Clutch Oil Temperature Sensor ] See Image Below.
• Both sensors are integrated and are located near the multi plate clutch

3 - Selector Lever -E313- => [ Selector Mechanism Assembly Overview ] See Image Below.
• Only the Selector Lever Sensor System Control Module -J587- and Shift Lock Solenoid -N110- are located on selector lever

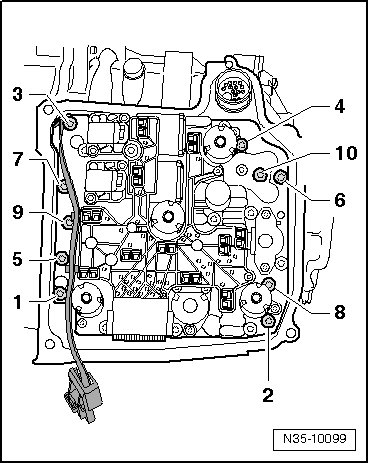

Valve Body






Direct Shift Gearbox (DSG) Mechatronic -J743- is integrated onto the Direct Shift Gearbox (DSG)
The following are secured to the valve body or integrated to the Direct Shift Gearbox (DSG) Mechatronic -J743-
• Automatic Transmission Pressure Regulating Valve 1 -N215-

• Automatic Transmission Pressure Regulating Valve 2 -N216-

• Automatic Transmission Pressure Regulating Valve 3 -N217-

• Automatic Transmission Pressure Regulating Valve 4 -N218-

• Automatic Transmission Pressure Regulating Valve 5 -N233-

• Automatic Transmission Pressure Regulating Valve 6 -N371-

• Solenoid Valve 1 -N88-

• Solenoid Valve 2 -N89-

• Solenoid Valve 3 -N90-

• Solenoid Valve 4 -N91-

• Solenoid Valve 5 -N92-

• Solenoid Valve 6 -N93-

• Temperature Sensor (in Control Module) -G510-


Valve Body continued






• Automatic Transmission Hydraulic Pressure Sensor 1 -G193-

• Automatic Transmission Hydraulic Pressure Sensor 2 -G194-

• Transmission Output Speed (RPM) Sensor -G195-

• Transmission Output Speed (RPM) Sensor 2 -G196-

• Gear Position Distance Sensor 1 -G487-

• Gear Position Distance Sensor 2 -G488-

• Gear Position Distance Sensor 3 -G489-

• Gear Position Distance Sensor 4 -G490-

• Driveshaft Speed Sensor 1 -G501-

• Driveshaft Speed Sensor 2 -G502-

• Transmission Fluid Temperature Sensor -G93-

• Back-Up Light Switch -F4-

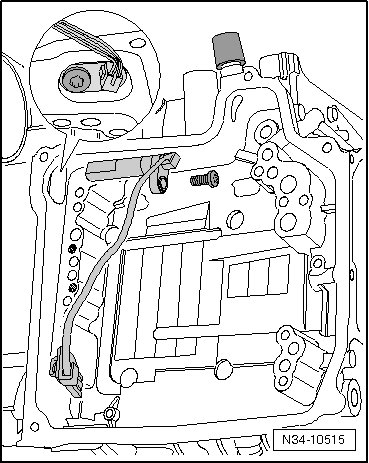

Transmission Input Speed (RPM) Sensor
and Clutch Oil Temperature Sensor






- - Transmission Input Speed (RPM) Sensor -G182- and Clutch Oil Temperature Sensor -G509-

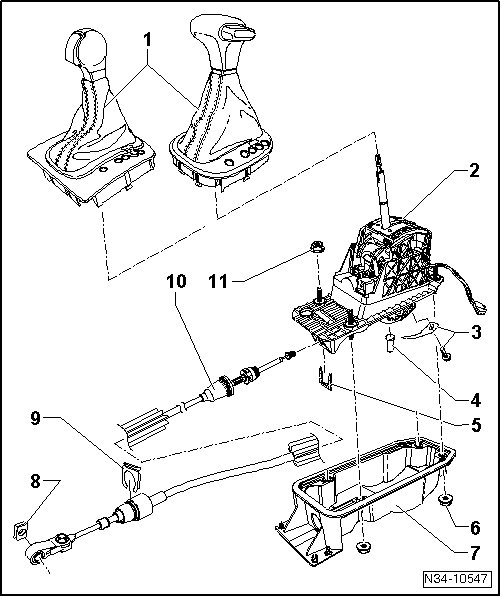

Selector Mechanism Assembly Overview






1 - Shift cover with knob
2 - Selector Lever -E313- and Selector mechanism
- Only the Selector Lever Sensor System Control Module -J587- and Shift Lock Solenoid -N110- are located on selector lever
The following are located on the selector lever or selector mechanism:
• Selector Lever Sensor System Control Module -J587-

• Shift Lock Solenoid -N110-

• Selector Lever Park Position Lock Switch -F319- is located in the selector mechanism
