Differential Assembly: Locations

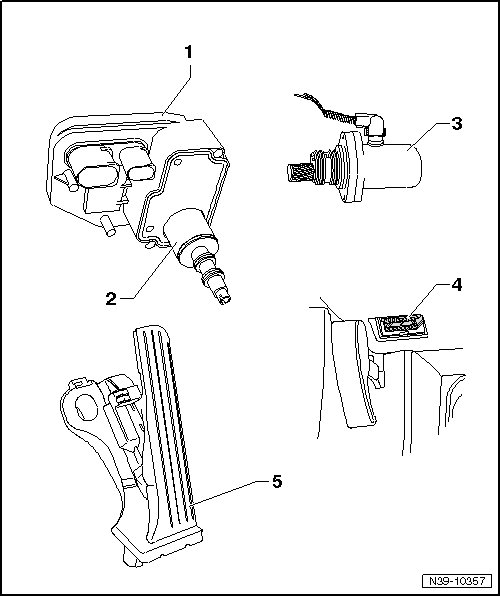

Electrical/Electronic Components and Locations






1 All Wheel Drive Control Module (J492)

• Important signals are transmitted from the Engine Control Module (ECM) and the ABS control module via data BUS to the all wheel drive control module.

2 Haldex Clutch Control Valve (N373)

3 Haldex Clutch Pump (V181)

• Can be checked in "Guided Fault Finding" using the vehicle diagnostic tester.

4 Diagnostic Connection

• Installed location: Left front foot well.

5 Accelerator Pedal Position Sensor (G79)
