Shift Element, Driver Side

Front Door Lamps and Switches

Shift Element, Driver Side

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Depending on equipment level, the following components are integrated with the driver door switch module:

• Left Front Window Regulator Switch (E40)

• Driver Left Rear Window Regulator Switch (E53)

• Driver Right Rear Window Regulator Switch (E55)

• Driver Right Front Window Regulator Switch (E81)

• Child Safety Button (E318)

• Push Button Illumination (L76)

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ((3409), screwdriver) will be positioned, using commercially available adhesive tape.

Removing:

- Switch ignition and all electrical consumers off and disengage the key or ignition switch in position 0 (ignition off).

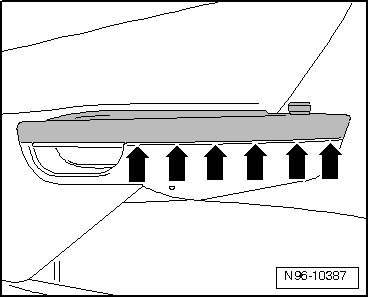

- Carefully pry off grip panel at retaining lugs - arrows - using (3409).

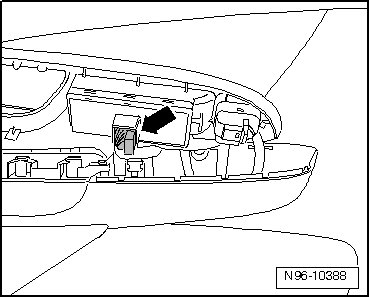

- Disconnect the connector - arrow -.

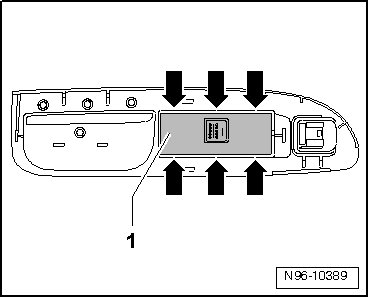

- Release retainers - arrows - and remove switch element - 1 - from grip trim.





Installing:

Install in reverse order of removal.
