Front Door Window

Front Door Window

Window Guide

Removing

• The following describes removing and installing the right window guide only. Removing and installing the left window guide is identical.

• Do not bend window recess seal when lifting off!





The exterior mirror, the window shaft strip and the trim have been removed.

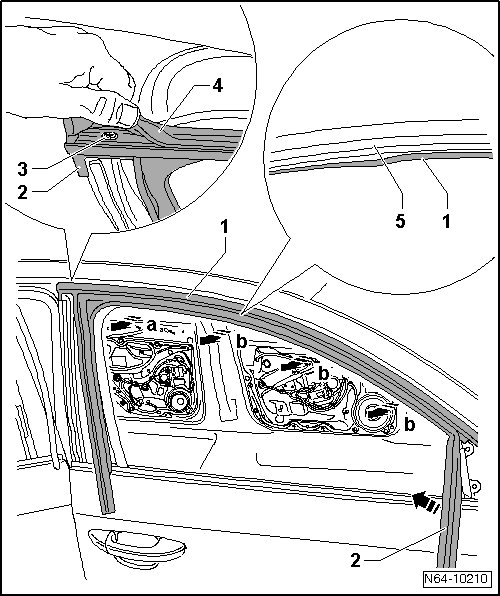

- Pull window guide - 2 - out of forward mount - 2 - - arrow -.

For window guides with trim molding

- Push window guide - 1 - in top rear area - 4 - slightly aside.

- Remove the clip - 3 -.

All window guides

- Fold sealing lip of window guide - 1 - from inside from window frame - 5 -.

- Pull window guide - 2 - evenly - arrows b - all around from door flange, start in rear area - arrow a -.

Installation

To install, perform the steps used for removal in reverse order.

Tightening specification for the bolts - 2 -: 2 Nm

• A function test must be performed before door trim is installed.

• While installing window guide, make sure it is seated evenly (wind noise).
