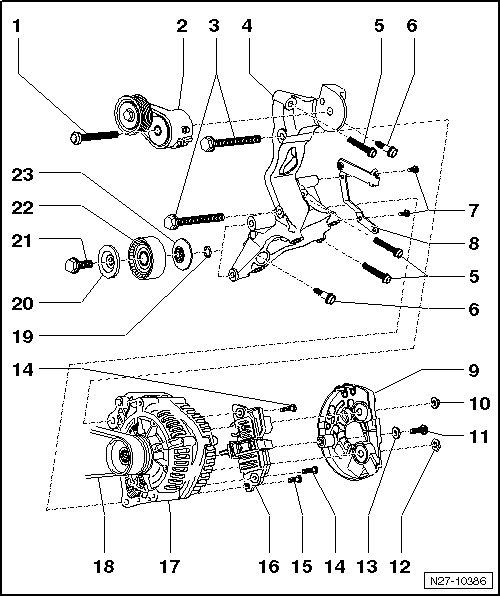

Generator Overview
Generator Overview
1 Internal Multi-Point Bolt
• For tensioning element => [ (Item 2) Ribbed Belt Tensioner ].
• M10x85
• 50 Nm
2 Ribbed Belt Tensioner
3 Collar Bolts
• For generator => [ (Item 17) Generator ].
• M8 x 90
• 23 Nm
4 Accessories Bracket
• For generator and A/C compressor.
• Tightening sequence, refer to => [ Fastener Tighten Specifications, Generator ] Fastener Tighten Specifications, Generator.
5 Socket-Head Bolt
• For accessories bracket => [ (Item 4) Accessories Bracket ].
• M8x50
• 23 Nm
6 Socket Head Fitting Bolts
• For accessories bracket => [ (Item 4) Accessories Bracket ].
• M8x28
• 23 Nm
7 Hex Socket Head Collar Bolts
• For bracket => [ (Item 8) Bracket ].
• M6 x 16
• 8 Nm
8 Bracket
• For Recirculation Pump (V55).
9 Protective Cap
10 Hex Head Collar Nut
• M8
11 Phillips Head Screw
• M5 x 21
• 4.5 Nm
12 Flat Hex Nut
• M8
13 Washer
• M5
14 Phillips Head Screws
• M4 x 19
• 2 Nm
15 Phillips Head Screw
• M4 x 13
• 2 Nm
16 Voltage Regulator
• Removing and installing, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.
17 Generator
• Removing and installing, refer to=> [ Generator ] Generator.
18 Ribbed Belt
• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.
19 O-Ring
• For idler roller => [ (Item 22) Idler Pulley ].
20 Dust Cap
• For idler roller => [ (Item 22) Idler Pulley ].
21 Collar Bolts
• For idler roller => [ (Item 22) Idler Pulley ].
• M10x36
• 40 Nm
22 Idler Pulley
• With grooved ball bearing.
23 Dust Cap
• For idler roller => [ (Item 22) Idler Pulley ].
