Fender Overview

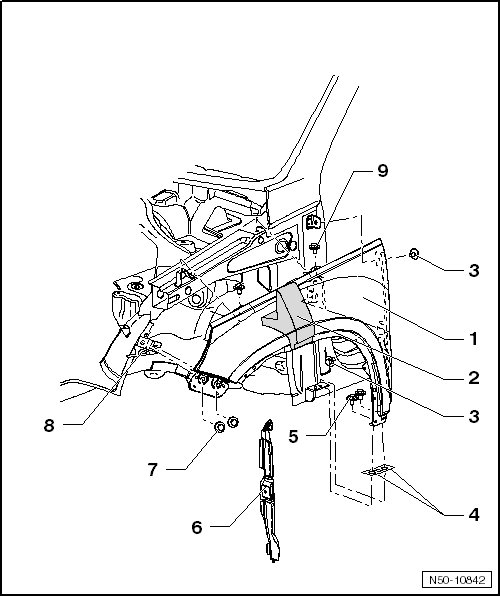

Front Fender, Assembly Overview

• The illustration shows a left fender. The right fender is identical.





1 Fender

• Removing and installing, refer to => [ Fender ] Fender

2 Foam piece

• Inserted between the fender and upper longitudinal member

3 Bolt

• 2 piece, at A-pillar

• Tightening specification: 7.5 Nm

4 Spacer

• Spacer (AKL 381 035 50)

5 Bolt

• Quantity: 2, on sill panel

• Tightening specification: 7.5 Nm

6 Fender end plate

• Removing and installing, refer to => [ Fender End Plate ] Fender End Plate

7 Bolt

• Quantity: 2, on fender brace

• Tightening specification: 7.5 Nm

8 Fender brace

• Removing and installing, refer to => [ Fender Brace ] Fender Brace

9 Bolt

• Quantity: 2 on the fender connecting piece

• Tightening specification: 7.5 Nm
