Cross Panel, Assembly Overview

Cross Panel, Assembly Overview

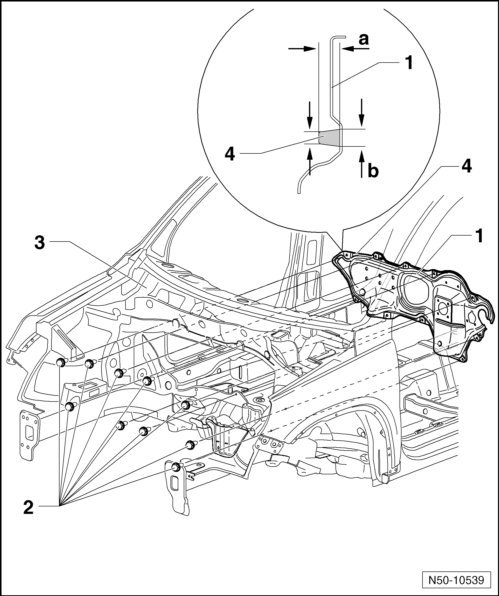

• Cross panel - 1 - is bolted and also bonded in with PUR adhesive sealing material - 3 -.





1 Cross Panel

• Removing:

- After unscrewing of bolts - 2 -, cut through adhesive bead using workshop tools.

2 Bolt

• Quantity: 10

• Tightening specification: 25 Nm

3 PUR adhesive sealant

• DH 009 100 03

• Bead diameter: - Height a - = 10 mm, - Width b - = 8 mm

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time
