Turbocharger Recirculating Valve, Checking







Turbocharger Recirculating Valve, Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• The Motronic Engine Control Module (ECM) (J623) fuses OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• On vehicles with automatic transmission, selector lever in position "P" or "N".

• A/C switched off.

• Ground connections between engine/transmission/chassis OK.

• Ignition switched OFF.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check

Start diagnosis

- Lift the vehicle on a hoist to access the turbocharger recirculating valve connector.

Checking internal resistance

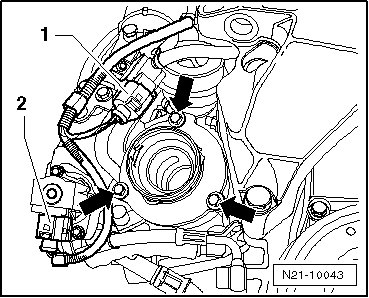

- Disconnect the Turbocharger Recirculating Valve (N249) electrical harness connector- 2 -.





- Using a multimeter, check the Turbocharger Recirculating Valve (N249) terminals 1 to 2 for resistance.





Specified value: 13.6 ohms +/- 5 ohms (at room temperature)

If the specified value was Not obtained:

- Replace the Turbocharger Recirculating Valve (N249) Refer to the repair information.

If the specified value was obtained:

Checking Voltage supply

- Using a multimeter, check the Turbocharger Recirculating Valve (N249) electrical harness connector terminal 1 to engine ground.





- Start the engine.

Specified value: Battery voltage.

- Switch the ignition OFF.

If the specified value was Not obtained:

- Check the wiring for an open, short circuit to each other, high resistance or short to ground.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the wiring connection.

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used, perform the following step.

- Install the test box.

If the manufacturers test box is not being used, perform the following step.

- Remove the Motronic Engine Control Module (ECM) (J623). Refer to the repair information.

- Using a multimeter, check the Turbocharger Recirculating Valve (N249) electrical harness connector terminal 2 to Motronic Engine Control Module (ECM) (J623)electrical harness connector T60 terminal 50 for an open circuit.






Specified value: 1.5 ohms max.

If the specified value was Not obtained:

- Check the wiring for an open or high resistance.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and the voltage supply was OK:

- Replace the Motronic Engine Control Module (ECM) (J623). Refer to the repair information.

- Install the engine cover with air filter. Refer to the repair information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
