Tightening Specifications

Tightening Specifications

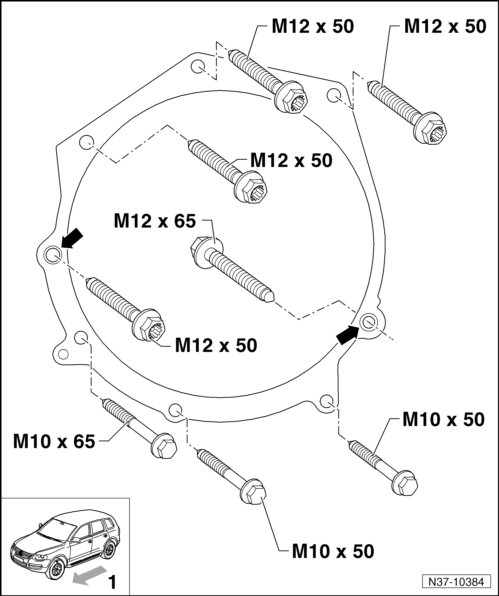

1 - Driving Direction

- Drive Plate to Torque Converter

• 60 Nm

• Quantity: 6, remove and install using the socket SW15 (V/175)

- M12 Bolts

• 80 Nm

- M10 Bolts

• 40 Nm

• The bolts are located in the lower flange

Arrows - Centering Sleeves
