System Specifications

Fastener Tightening Specifications






• 1 Always replace

• 2 Has left hand threads

• 3 Eos, GTI, Passat and CC only

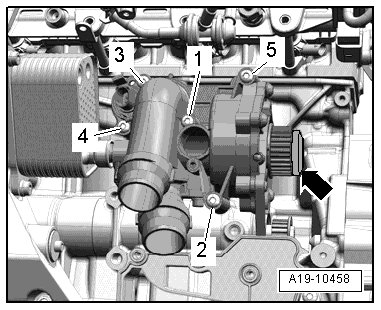

Coolant Pump Bolt Tightening Sequence and Specification






- Tighten the bolts in sequence - 1 through 5 - to 9 Nm.
