Turn Signal Switch

Turn Signal Switch


Follow the specified sequence when removing and installing steering column switch components. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.

• The "turn signal switch" consists of the Turn signal switch (E2) , Headlamp dimmer/flasher switch (E4) and, depending on the equipment, (CCS) Cruise control switch (E45).

• For reasons of clarity, steering column switches with Cruise control switch (E45) are depicted as removed in the illustration.

Removing

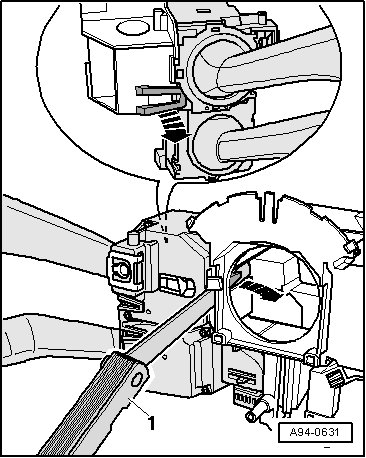

- Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove the "turn signal switch" toward the rear of the vehicle.






Installing

Install in reverse order of removal. Note the following:

• The "turn signal switch" must engage audibly.
