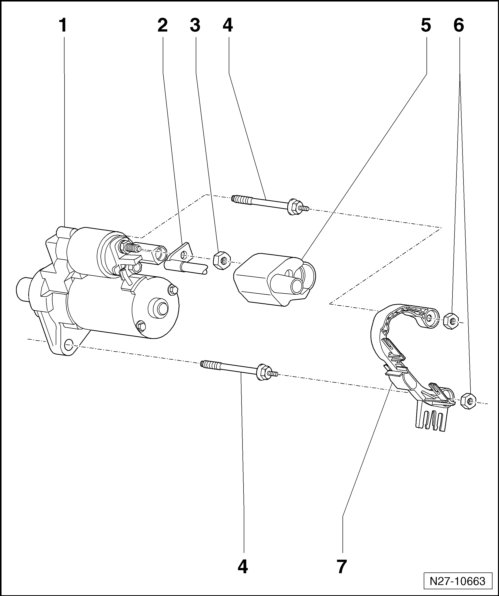

Starter Overview






1 - Starter

• Removing and installing, refer to => [ Starter ] Service and Repair.

• Checking, refer to => [ Starter, Checking ] Testing and Inspection.

2 - Connection B+ Wire To Starter

3 - Mounting Nut B+ Wire To Starter

• 15 Nm

• M8

4 - Starter Bolts

• 75 Nm

• M12

5 - Cap

6 - Mounting Nuts, Wiring Bracket

• 15 Nm

• M8

7 - Wiring Bracket

Not Illustrated

• Mounting bolt, air filter housing to body: 10 Nm
