Windshield, Assembly Overview

Windshield, Assembly Overview

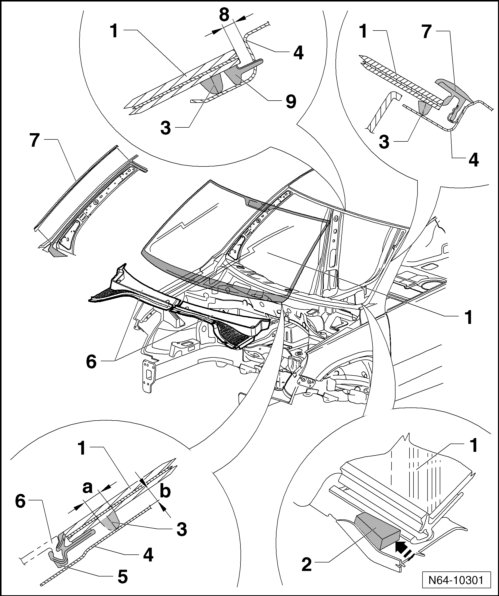

1 Windshield

• Remove the windshield, refer to => [ Windshield, Removing ] Windshield, Removing

• Windshield, Installing, refer to => [ Windshield, Installing ] Windshield, Installing

2 Window adjuster

• 443,845,631 A

3 PUR adhesive sealant

• Bead adhesive: Width a = 7 mm, height b = 11 mm (including pre-coating, residual material on window glass and window flange)

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time

4 Body flange

• Paint damage, repairing, refer to => [ Paint Damage, Repairing ] Paint Damage, Repairing

5 Retainer

• Is a part of the windshield

• A new windshield must be installed if the binding profile is damaged

6 Plenum Chamber Cover

• Must only be pulled out of binding profile by hand.

• Plenum Chamber Cover, Removing and Installing, refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover

7 Drip rail

• Removing and installing, refer to => [ Drip Rail ] Drip Rail

8 Panel gap dimension

• From window edge to roof edge

• Set a constant dimension of 3.5 mm using adjustment gauge (3371)

9 Sealing lip

• Is a part of the windshield

• If sealing lip is damaged when cut out, a new windshield must be installed.
