Rear Window Wiper Blade Park Position, Adjusting

Rear Window Wiper Blade Park Position, Adjusting

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)

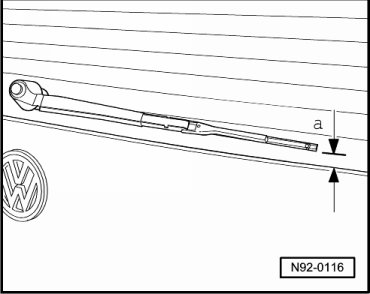

The distance - a - between the middle of the wiper blade insert and the lower edge of the window must be 23 mm.






- If necessary, offset the wiper arm to set the rear wiper blade park position.

Remove wiper arm. Refer to=> [ Rear Window Wiper Arm ] Rear Window Wiper Arm.

- Tighten all threaded connections to the specification given in => [ Rear Window Wiper System Overview ] Rear Window Wiper System Overview.
