Variable Intake Manifold, Checking

Variable Intake Manifold, Checking

Only perform the test if there is a loss of torque. That means there is a reduction in engine acceleration.

Special tools, testers and auxiliary items required

• Hand Vacuum Pump (VAS 6213)

Conditions

• The intake manifold runner control valve was tested with the vehicle diagnostic tester.

If the intake manifold runner control valve is OK, perform the following test:

- Remove the engine cover.

- Start the engine and let run at idle.

- Have a second person increase the engine speed abruptly (press the accelerator pedal). Observe the variable intake manifold vacuum actuator.

• The actuator must activate - arrow -.






If the change over does not function as specified:

- Check the vacuum system for leaks.

- Check whether the change over mechanism moves easily. Do this by actuating the linkage by hand.

- Check whether the vacuum lines are correctly connected.

- Check that the vacuum hoses are not porous.

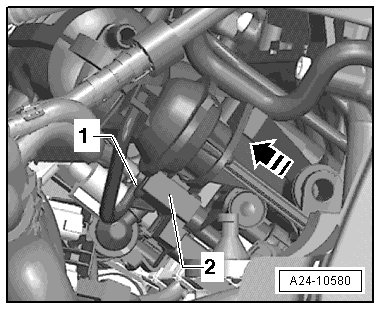

- Remove the adjusting element vacuum hose - 1 - from the intake manifold runner control valve - 2 -.

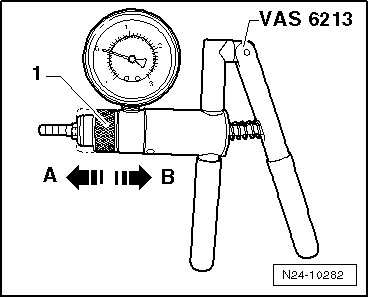

- Set the sliding ring - 1 - on the hand vacuum pump (VAS 6213) to the - A - position for "vacuum".

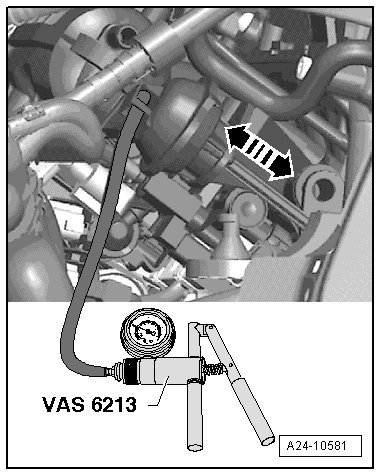

- Connect the hand vacuum pump (VAS 6213) to the intake manifold runner control valve actuator.






- Operate hand vacuum pump (VAS 6213) several times.

The vacuum actuator must move - arrows -.

- Replace the vacuum actuator if it does not move.
