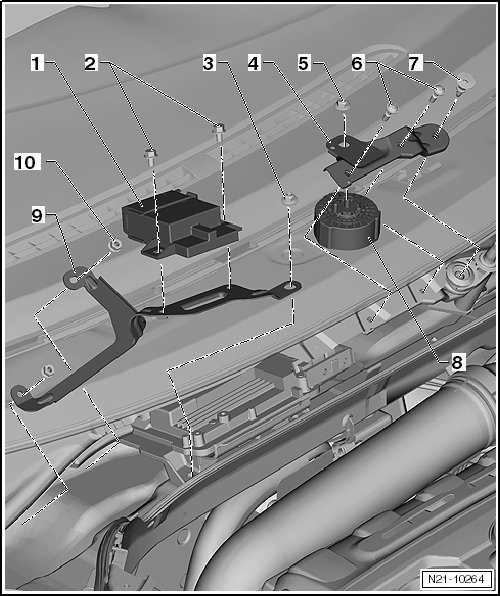

Structure-Borne Sound Actuator R214 and Structure-Borne Sound Control Module J869 Overview

Structure-Borne Sound Actuator R214 and Structure-Borne Sound Control Module J869 Overview

• The structure-borne sound actuator and structure-borne sound control module are not installed in all vehicles.






1 Structure-Borne Sound Control Module (J869)

• Installed location: inside the plenum chamber.

• Remove the plenum chamber cover and bulkhead to remove and install.

2 Bolt

• 8 Nm

3 Nut

• 8 Nm

4 Structure-Borne Sound Actuator Bracket

5 Nut

• 15 Nm

6 Bolt

• 8 Nm

7 Bolt

• 8 Nm

8 Structure-Borne Sound Actuator (R214)

• Installed location: inside the plenum chamber.

• Remove the plenum chamber cover and bulkhead to remove and install.

9 Structure-Borne Sound Control Module Bracket

10 Nut

• 8 Nm
