Clutch Switch: Service and Repair

Clutch Position Sensor G476

Special tools, testers and auxiliary items required

• Hose Clamps up to 25 mm Dia. (3094)

Removing

- First, check whether a coded radio is installed. If so, obtain the anti-theft code.

- Remove the battery and, if necessary, remove the rear panel on the battery case.






If a line - 1 - with a round component is installed directly below the master cylinder, the line must be removed.

• While performing the following work, make sure no brake fluid comes into contact with the longitudinal member or the transmission. If it does, clean the area thoroughly.

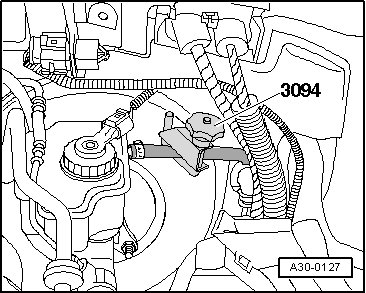

- Clamp off the supply hose to the master cylinder using a hose clamp up to 25 mm dia. (3094).

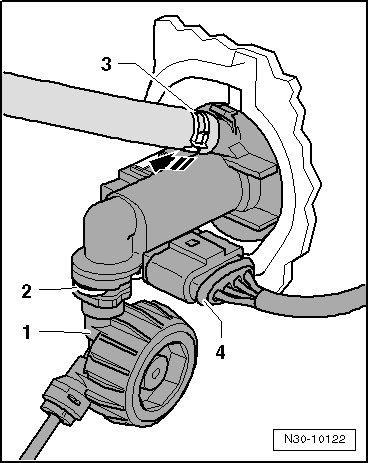

- Pull out the clip - 2 - from the master cylinder until it stops, using a screwdriver or a pointed tool.






- Remove the line - 1 - from the master cylinder and seal it.

- Unclip the clutch position sensor from the master cylinder - arrow - and remove it.

- Disconnect the connector - 4 -.

Installing

Install in the reverse order of removal. Pay attention to the following:

• Replace the hose clamp.

• Refer to the Parts Catalog.

If the line - 1 - was removed:

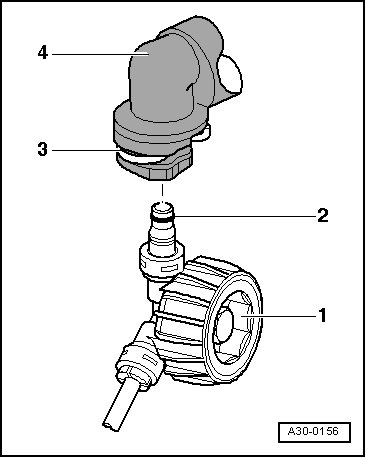

- Push the line - 1 - and the seal - 2 - into the master cylinder connection - 4 - until the clip - 3 - audibly locks into place.






- Pull on the line to make sure it is secure.

- After removing the hose clamp up to 25 mm dia. (3094) , bring the hose back to its original shape.

- Bleed the clutch system. Refer to => [ Clutch System, Bleeding ] Procedures.

- Install the battery.
